About the VMIVME-4900

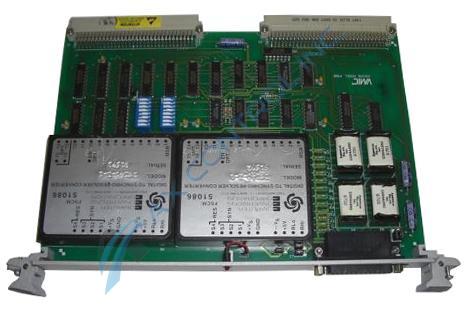

VMIVME-4900
This unit is a part of the wide array of devices that were initially developed by the industrial automation branch of General Electric. Eventually, the module and the series as a whole was acquired and then produced by Abaco Systems.
The VMIVME-4900 is a model of Dual Channel, Digital to Synchro / Resolver Converter Board, designed to be directly compatible with a high powered, synchro booster amplifier modules.
It’s designed with a set of 1.5 volt, 4.5 volt, and 5.0 volt outputs, running on alternating current. The VMIVME-4900 module comes fully integrated with real time and offline fault detection properties, with isolation capabilities. This unit is also equipped with a set of internal transformer modules.
The VMIVME-4900 comes integrated with a set of standard features and components for its series. There is a 14 bit converter module, with an overall accuracy rating of plus or minus 4 arc minutes. There are both 3 and 4 wire outputs for driving the synchros and resolvers, respectively coordinated.
The front paneling of the VMIVME-4900 module comes integrated with a failure indicator LED light, to alert users of any failed actions in quick fault isolation. The LED light is illuminated once there is a powerup clearing via a system reset and is unlit by the operator’s program control. There is an AMP D type connection module to allow for front panel field connection.
