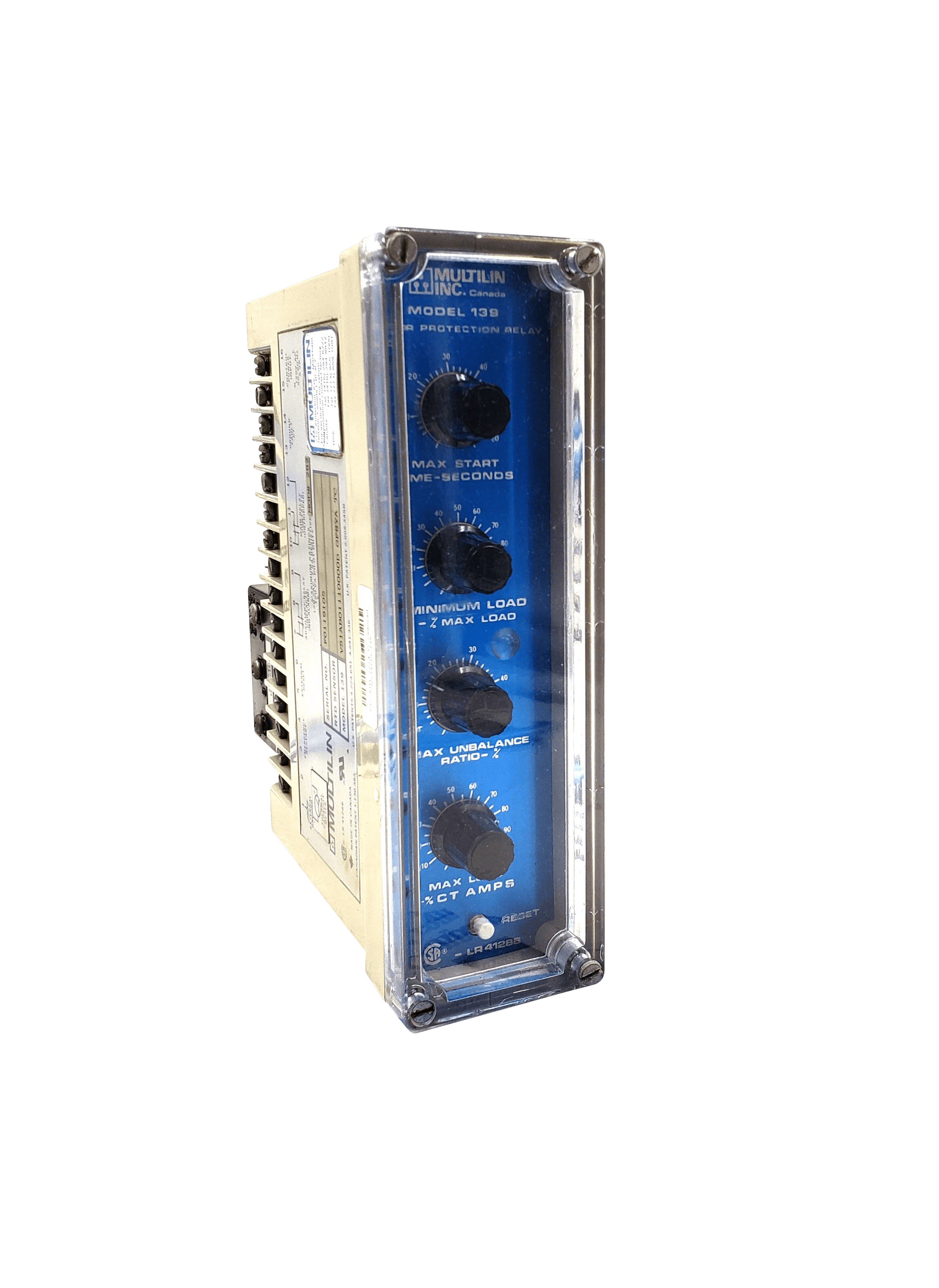

139 Series Motor Protection Relay
3 Year Warranty
The GE Multilin 139 Series Motor Protection Relays were formerly sold under Multilin which was a division of Derlan Manufacturing. The function of these relays is to monitor and protect 3 phase AC Motors.
The GE Multilin 139 Series Motor Protection Relays were formerly sold under Multilin which was a division of Derlan Manufacturing. The function of these relays is to monitor and protect 3 phase AC Motors.
| Part Number | Description | Manuals | Stock Level |
|---|---|---|---|
| 139-120V | Motor Protection Relay number 139-120V operates on a power supply of 120 volts and has input and output external relay connections. This model can be either horizontally or vertically mounted. | In Stock Ships 3-5 Days | |
| 139-DO-FLC | Model number 139-DO-FLC is equipped with both temperature sensing and emergency restart features. This model is part of the motor protection relay series. Fourteen indicators make up the face of the 139-DO-FLC relay. | In Stock Ships 3-5 Days | |
| 139-DO-NFS-FLC | The 139-DO-NFS-FLC relay has a different output option, which is a full load current. The full load current of this relay operates at 4-20 mA. The 139-DO-NFS-FLC relay has a large quantity of RTD resistances and temperatures. | In Stock Ships Today | |
| 139-H-FLC | Full Load Current Output Option Relay 139-H-FLC is a horizontal mount-specific model. This model has an external reset switch that operates with the front panel reset switch. This model has an emergency restart option as well. | In Stock Ships 3-5 Days | |
| 139-H-FLC-NFS | General Electric Multilin Motor Protection Relay 139-H-FLC-NFS will be horizontally mounted and has a full load current output option. The full load current option operates at 4-20 mA. There are a variety of features such as memory lockout and fault diagnosis. | In Stock Ships 3-5 Days | |
| 139-NSF-V-TC | There are several output options available for the 139 Motor Protection Relay models. The output for the 139-NSF-V-TC model is a thermal capacity meter option. This model has a specific mounting orientation which is vertical mounting. | In Stock Ships 3-5 Days | |
| 139-V-FLC | Vertical Mount and Full Load Control Output Option Motor Protection Relay 139-V-FLC is used to protect three-phase AC motors against damage. This model is field testable and has CSA approvals. | In Stock Ships 3-5 Days | |
| 139-V-TC | Relay option 139-V-TC is one of the motor protection relay models that can be vertically mounted and has a thermal capacity metering output option. The operation of the relay can be checked without any special equipment to ensure that all relay functions are running as required. | In Stock Ships Today | |
| 139-V-TC-FLC | Motor Protection Relay 139-V-TC-FLC is used in vertical mounting orientation. The protections included are single phase/unbalance and locked rotor. The standard power supply for this model is 120 VAC. | Call for Availability | |
| 139-V1EFTZ-DK | The 139-V1EFTZ-DK relay operated on a current input of one ampere. It can be used with three-phase AC motors and operates on a power supply voltage of 240. Memory lockout will not occur with unbalance, ground fault, and overload trip conditions. | In Stock Ships Today |
