General Electric 269-100P-120 Digital Multilin GE Motor Management Relay

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 269-100P-120 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 269-100P-120
  • SKU: 269100P120GM
  • Manufacturer: GE Multilin
  • Series: 269 Motor Management Relay

About the 269-100P-120

The 269-100P-120 is a Multilin motor management relay manufactured by GE. The 269-100P-120 is designed for integrated control and protection for medium-sized AC motors. The 269-100P-120 reduces troubleshooting and maintenance costs, can be upgraded in the field, and simplifies testing procedures. It allows the user to access data through standard RS485 communications using Modbus RTU.

Standard features of the 269-100P-120 include:

  • 1 programmable analog output

  • 4 output relays

  • 5 factory-programmed digital inputs

  • 8 programmable RTDs

  • 8 standard overload curves and user-defined overload FlexCurve

  • Short-circuit and ground fault

  • 2 auxiliary relays

  • Pre-trip alarm warnings

  • Emergency restart ability

  • 100 Ohm platinum RTD

The 269-100P-120 has an undercurrent function that will provide an early warning for certain conditions, such as a loss of airflow within fans, or suction within pumps. Trip levels can be set for temperature, overload, acceleration, or the number of starts per hour. The 269-100P-120 runs in continuous self-check mode with or without a motor running and will send a signal to a user-selected output if an alarm is triggered.

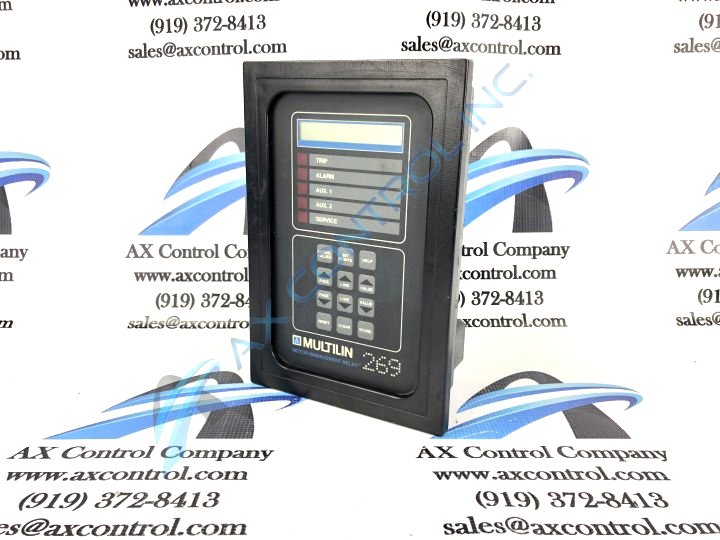

The front panel of the 269-100P-120 is designed with a 48 character LCD display (alpha-numeric.) The display is backlit to allow for easy viewing. Below this are 5 LED status indicators. Four of these (trip, alarm, aux 1 and aux 2) indicate an output is activated. The Service LED is lit during a self-test alarm. The keypad is used to select actual values, causes of alarms and trips, fault diagnosis, and to program setpoints. The exterior case meets IP40X and is corrosion and flame retardant.

Frequently Asked Questions about 269-100P-120

What is the RTD composition for the 269-100P-120?
The 269-100P-120 GE Multilin 269 motor management relay has RTDs composed of 100
What are the characteristics of the phase current inputs for the 269 Multilin GE motor management relay 269-100P-120 that allow it to serve as a motor management relay?
The motor management relay 269-100P-120 has a variety of features designed to provide protection to industrial mo
What are the front view features in light of the capabilities of the 269-100P-120 as a motor management relay?
The 269-100P-120 front display has a 48 character capability. This LED alphanumeric dispay is used to view values, alarm and trip causes or to program different set points.  Below the display are trip, alarm, aux 1, aux 2, and service status indicators. These indicators are used to visually show which output is activated.

Reviews For 269-100P-120

Internal Review
(5.0)

The 269 Motor Management Relay offers an early warning for loss of airflow, making it ideal for use with pump systems or fans. This is an undercurrent function. Alarms can be viewed on the 48-character LCD display located on the front panel. --AX Control Tech Team.

Repair Services For 269-100P-120

Type Lead Time Price Action
Repair Service 1-2 weeks $1162

Our highly skilled technicians can repair your 269-100P-120. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
