269PLUS-10C-120VAC

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
A versatile, high-voltage relay in the GE Multilin 269 PLUS Motor Management Relay series, the 269PLUS-10C-120VAC protects and controls medium motor systems.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 269PLUS-10C-120VAC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 269PLUS-10C-120VAC
  • SKU: 269PLUS10C120VACGM
  • Manufacturer: GE Multilin
  • Series: 269 Plus Motor Management Relay

269PLUS-10C-120VAC Technical Specifications

Manufacturer General Electric Multilin
Manufacturer Location Markham, Ontario, Canada
Model Number 269PLUS-10C-120VAC
Software EnerVista 269
User Manual 1601-0013-E4
Dimensions approx. 11.375” L, 7.5” W, 4.5” H
Weight 5lb, 14oz
Communications Type RS485 2-wire, half duplex, isolated
RTD Inputs Display Accuracy ± 2°C
Overload Curves 8 curves fixed shape, 1 custom curve

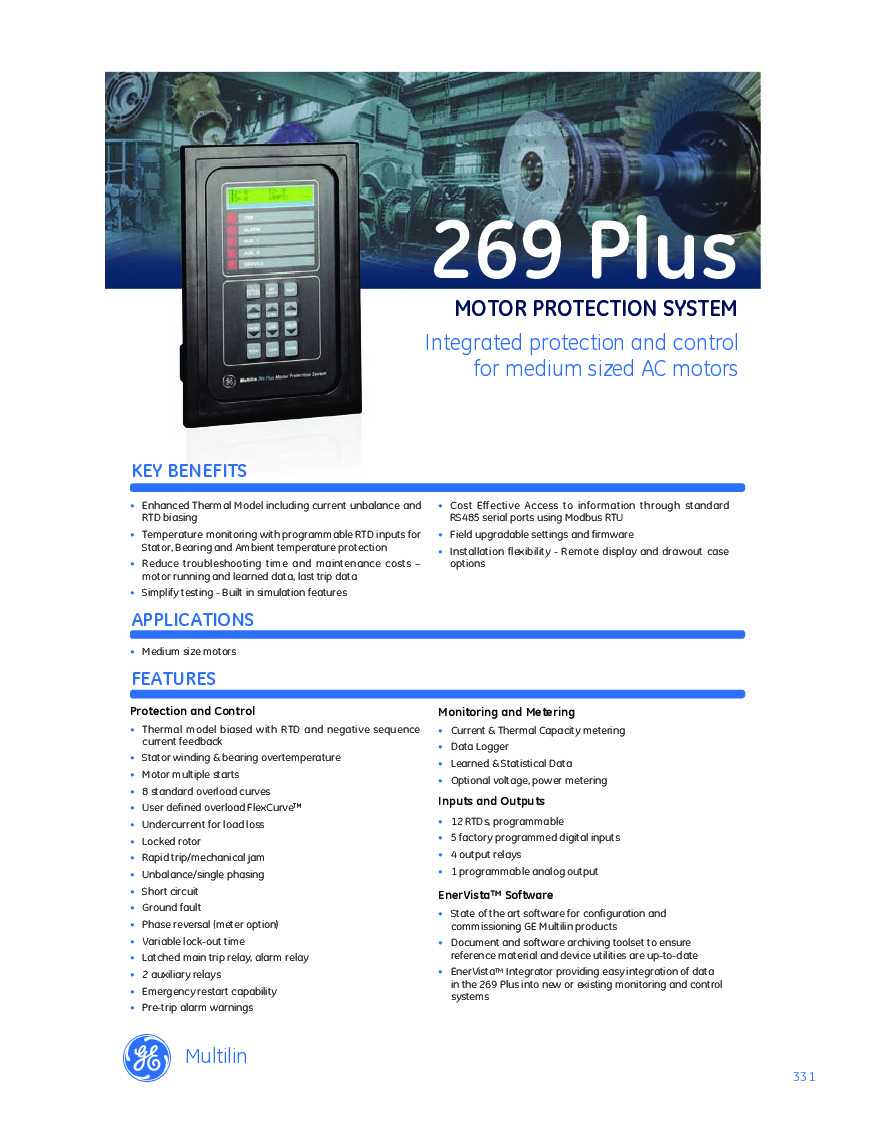

About the 269PLUS-10C-120VAC

The 269PLUS-10C-120VAC is a versatile, high-voltage relay in the GE Multilin 269 PLUS Motor Management Relay series. This series offers operators some degree of flexibility in the configuration and programming of relays to better suit a wide range of motor protection applications. The 269PLUS-10C-120VAC model comes with 10 Ohm copper RTD and 120 VAC control voltage options.

Along with several RTD types, fail-safe relay options, and relay contact arrangement choices, General Electric 269 PLUS relays offer the flexibility of a custom curve feature. With this feature, users enter their own breakpoints to form a custom curve, allowing this relay to be used in applications beyond those in which the eight standard overload curves can be used.

All 269PLUS-10C-120VAC relay set points are field programmable through the use of a front panel display and keypad. This display can also be used to monitor operations and review diagnostic features, including alarm conditions and unit self-test results. Along with the built-in display and keypad, an RS485 port permits the connection of the relay to programmable controllers and computers.

The 269PLUS-10C-120VAC does not carry the primary motor current. Instead, it serves as a pilot device. Each motor that is to be protected requires one 269 PLUS relay. More information on the 269PLUS-10C-120VAC model and the 269 PLUS series, in general, can be found in GE Multilin 269 Plus Motor Management Relay Instruction Manual 1601-0013-D3.

Frequently Asked Questions about 269PLUS-10C-120VAC

What are the specifications for the phase current inputs of the Multilin 269PLUS-10C-120VAC GE motor management and medium sized motor protection digital relay?
The GE Multilin 269PLUS-10C-120VAC GE motor management relay has phase current inputs with a conversion that is calibrated RMS, and that has a sample of 2 ms. These inputs range from 0.05 to 12 multiplied by the phase CT setpoint in primary amps. Thus the full scale phase current input is at the 12 multiplied by phase CT amp primary setpoint. These statistics for phase current inputs of the Multilin 269PLUS-10C-120VAC GE motor management relay have an accuracy of plus or minus 0.5% of the full scale. The frequency range for phase current inputs for this relay is a range from 20 to 400 Hz.
What are the contacts composed of and what is the minimum permissible load for the outputs of the Multilin 269PLUS-10C-120VAC GE motor management relay?
The General Electric Multilin 269PLUS-10C-120VAC GE digital 269 PLUS relay is used for managing and protecting various motors that are medium sized. The outputs for the 269PLUS-10C-120VAC Multilin 269 PLUS are composed of silver alloy. These output contacts have a minimum load that is acceptable of 5 VDC, at 100 mA current, and a power of 12 VAC.

Reviews For 269PLUS-10C-120VAC

Internal Review
(5.0)

GE Multilin’s 269PLUS-10C-120VAC offers a vast array of monitoring and metering functions. The relay records actual values such as RTD temperatures, unbalance ratio, frequency, and phase currents; these parameters can be displayed on the LCD and also viewed in greater detail in Multilin’s EnerVista software program. This unit also automatically records pre-trip conditions and can self-assess hardware health. - AX Control Tech

Repair Services For 269PLUS-10C-120VAC

Type Lead Time Price Action
Repair Service 1-2 weeks $1110

Our highly skilled technicians can repair your 269PLUS-10C-120VAC. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
