SR469-P1-HI-A1-E-H

Name: SR469-P1-HI-A1-E-H
Brand: GE Multilin
SKU: SR469P1HIA1EHGM
Price: 1361 USD
Availability: LimitedAvailability
Rating: 4 (1 reviews)

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The SR469-P1-HI-A1-E-H is a cased basic unit with 1 A phase CT secondaries. The unit's primary CT is rated 1 to 5000 Amps. CTs have a nominal frequency of 20-70 Hz. The unit is rated for use in harsh/chemical environments.

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a SR469-P1-HI-A1-E-H to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: SR469-P1-HI-A1-E-H
SKU: SR469P1HIA1EHGM

Manufacturer: GE Multilin
Series: 469 Motor Management Relay

Description
Repairs
Warranty
Manuals

SR469-P1-HI-A1-E-H Technical Specifications

Manufacturer	General Electric Company USA, GE Industrial Systems
Phase CT Secondaries	1A Phase
Series	469 Motor Management Relay
Part Number	SR469-P1-HI-A1-E-H
Protocol	Modbus RTU/ Half Duplex
Analog Outputs	0-1 mA
Voltage Option	High
High Voltage Range	90 to 300 VDC

About the SR469-P1-HI-A1-E-H

The SR469-P1-HI-A1-E-H is a GE Multilin relay from GE Grid Solutions. The module is from the company’s Multilin 469 SR series of relays. These relays offer integrated management and protection for medium-voltage motors. AX Control maintains a large inventory of many GE Multilin relays. If this unit is not exactly what you’re looking for, check out our other inventory.

The SR469-P1-HI-A1-E-H is a cased basic unit with 1 A phase CT secondaries. The unit’s primary CT is rated 1 to 5000 Amps. CTs have a nominal frequency of 20-70 Hz. The unit is rated for use in harsh/chemical environments. It has an enhanced front panel and is rated for control power of 70-265 VAC or 90-300 VDC.

GE Multilin relays have a front panel that includes a draw-out handle that can be sealed to stop unauthorized access. The front panel has a program port interface with a programmable baud rate of up to 19,200. The faceplate also includes control and programming keys, value keys, and a 12-key numeric keypad. Additionally, the faceplate includes motor status LEDs, device status LEDs, and output relay LED indicators.

Primarily, the SR469-P1-HI-A1-E-H and other GE Multilin relays are used for thermal protective functions. The units offer unbalance biasing, hot and cold safe stall ratios, overload curves, RTD biasing, motor cooling time constants, and start inhibit as well as emergency restart.

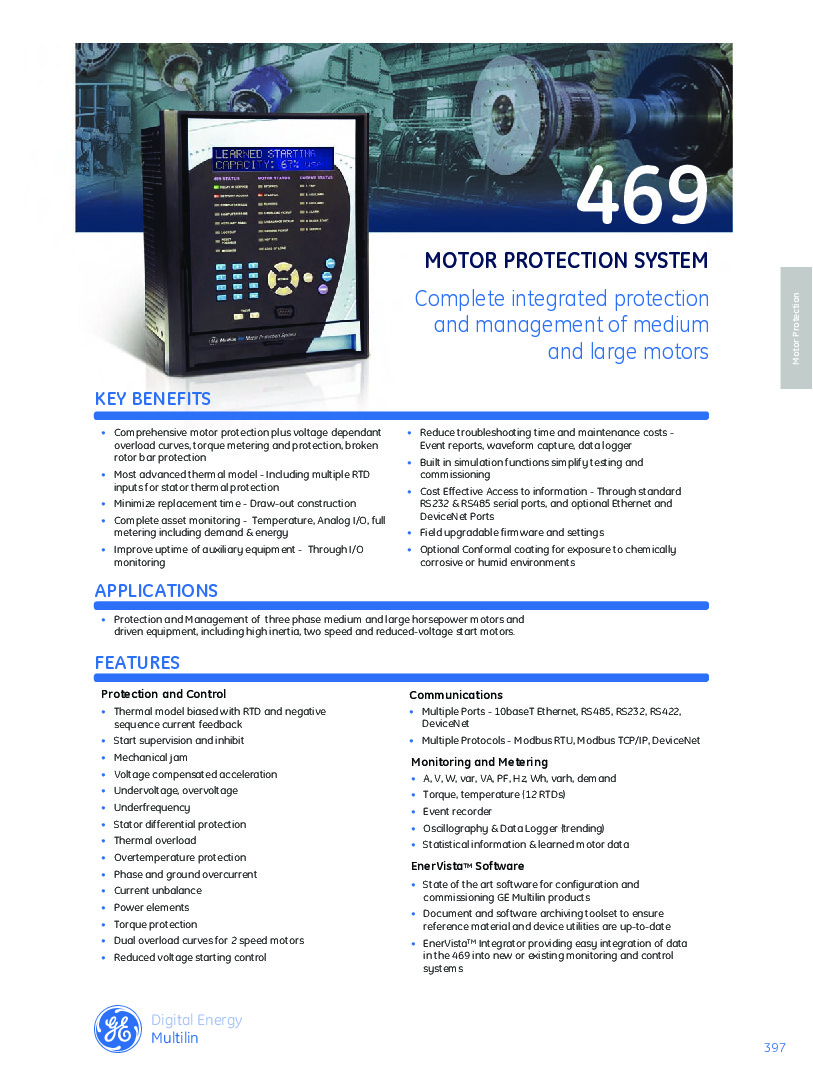

GE Digital Energy manuals and user guides can provide you with more information about the SR469-P1-HI-A1-E-H. If you don’t have the original copies provided to you with your OEM purchase, AX Control is happy to help when we can to fill in the gaps of your library.

Frequently Asked Questions about SR469-P1-HI-A1-E-H

At what levels are the current and voltage measurements preformed at on the SR469-P1-HI-A1-E-H Motor Management Relay?

For the SR469-P1-HI-A1-E-H Motor Management Relay current and voltage measurments, they are preformed at the secondary levels. This transforms the primary values to use current transformers and voltage transformers ratios and system voltage. These 469 Motor Management Relay's are designed to display as a primay system with values. But for a rare case with a phase of current transformers, to figure out the currents measurements are as simple as entering the current transformers primary current. That can either be 1A or 5A and it will be specified before the relay is purchased. It doesn't matter to much with the ground current transformers actual inputs because just like the voltage transformer inputs, it is not required to input the values regarding the ground current transformers or voltage transformers inputs.

What is activated when the start command is issued by the Relay SR469-P1-HI-A1-E-H Motor Management Relay by GE?

The auxiliary relay that is assigned to the starting controls is what is activated when the relay is commanded to start, but only for 1 second, just to complete a close coil circuit for the breaker application. Or for the contactor application to be completed when the start control circuit is started. To maintain the circuit, a sealing contact should be used for the contactor. In the 469 communications guide, you can find details on this issue for starting and or stopping on command from the communications, it is on the GE Publications GEK-106491.

Reviews For SR469-P1-HI-A1-E-H

Internal Review

(5.0)

General Electric Multilin's SR469-P1-HI-A1-E-H's metering feature allows the relay to detect actual values for variables such as temperature, frequency, and amperes. The metering feature reduces costs by eliminating the need for extraneous metering equipment and connections. -AX Control Tech Team

Repair Services For SR469-P1-HI-A1-E-H

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1361

Our highly skilled technicians can repair your SR469-P1-HI-A1-E-H. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
