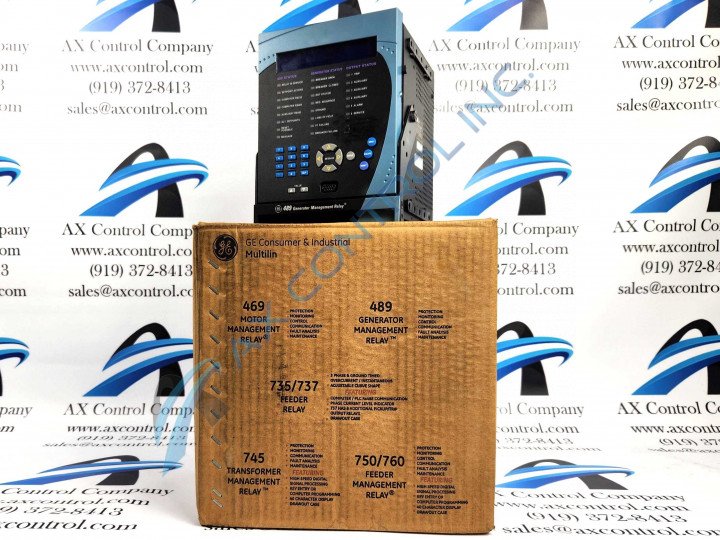

489-P5-HI-A20-E Image One
3 year warranty

❯

489-P5-HI-A20-E Image 1
489-P5-HI-A20-E Image 2
489-P5-HI-A20-E Image 3
489-P5-HI-A20-E Image 4
visa card logo american express logo master card logo bbb logo duns seal

About | Product Specifications | FAQs

489-P5-HI-A20-E

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.83 (12)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.83 (12)
  • Click a star to rate this product
Designed with an enhanced display the 489-P5-HI-A20-E model operates on a high voltage and does not have a harsh environment coating. The software used with this relay is EnerVista 489 Setup.
  • Order Number: 489-P5-HI-A20-E
  • Product Type: SR489 Generator Management Relay
  • OEM: GE Multilin (GE Grid Solutions)
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 489-P5-HI-A20-E to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 489-P5-HI-A20-E
  • SKU: 489P5HIA20EGM
  • Manufacturer: GE Multilin
  • Series: 489 Generator Management Relay

489-P5-HI-A20-E Technical Specifications

Alternate Model Number SR489-P5-HI-A20-E
Country of Manufacture Made in Canada
Model Number 489-P5-HI-A20-E
Input Voltage 90-300VDC or 70-265VAC
Inadvertent Energization Time Delay No Intentional Delay
Impulse Voltage Withstand Test Level 5 KV
EFT Standard IEEE/ANSI C37.90.1
3rd Harmonic Timing Accuracy ±3.0 s
RS485 Baud Rates 300, 1200, 2400, 4800, 9600, 19200
RTDs 1 to 12 Elements Alarm and Trip
Undervoltage Curve Shapes 300, 1200, 2400, 4800, 9600, 19200

About the 489-P5-HI-A20-E

The 489-P5-HI-A20-E is a generator management relay that is manufactured by GE Multilin as part of the 489 Generator Management Series.  This relay has 5A phase CT secondaries and a HI control power of 90-300 VDC and 70265 VAC at 48-62 Hz. The analog outputs on this relay are 4 to 20 mA. This 489-P5-HI-A20-E relay has an enhanced display with a larger LCD than the basic display generally serves as an upgrade from the 489-P5-HI-A20 basic display version.

The 489-P5-HI-A20-E is the most installed relay in the 489 Generator Protection Series and as a result is a high demand relay. The 489-P5-HI-A20-E has the following features built-in to the relay.

  • Trip and Alarm Protection
  • Metering
  • Breaker Failure
  • Flash Memory
  • Trip Coil Supervision
  • VT Fuse Failure
  • Simulation

The 489 Enervista 489PC Software is utilized along with the 489-P5-HI-A20-E to allow the user to interact and program the relay from a PC. This Software is included in New Factory Package versions of the 489-P5-HI-A20-E. Additionally, a SR489-CASE draw-out case is included with new 489-P5-HI-A20-E and can be included with refurbished relays upon request. Manuals and other manufacturer documentation on the 489-P5-HI-A20-E is available from GE Power Management and GE Multilin.

Frequently Asked Questions about 489-P5-HI-A20-E

What does the E stand for in the part number 489-P5-HI-A20-E for GE generator management relays?
The E in the part number 489-P5-HI-A20-E GE Generator Management Relay stands for an enhanced display with a larger LCD than the basic display.
How do I change the range of values?
Press the HELP button and it will display sensitive content about setpoints. The range of values and how you change the setpoint are in the HELP messages.
How is the generation of power displayed on the 489-P5-HI-A20-E GE generator management relay?
On the generator management relay for the part number of 489-P5-HI-A20-E, the power is generated as positive watts. An induction generator normally needs reactive power by convention, form the system for excitation.
What does the 489 generator management relay do?
The 489 GE Generator Management Relay manages synchronous and induction of the generator, it is a microprocessor-based relay that is designed to protect and manage the generator.

Reviews For 489-P5-HI-A20-E

Internal Review
(4.0)

The 489-P5-HI-A20-E is housed in a metal and plastic chassis; the plastic latch is particularly brittle and prone to breaking if too much pressure is applied. Users should take particular care if the components don't attach or interact smoothly with one another. However, this is a larger problem with Multilin as a whole and no extra worry should be had while using this unit as your main interface. Additionally, this relay has high demand and very limited availability on the market as of 2023. - AX Control Technician

Repair Services For 489-P5-HI-A20-E

Type Lead Time Price Action
Repair Service 1-2 weeks $1635

Our highly skilled technicians can repair your 489-P5-HI-A20-E. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
