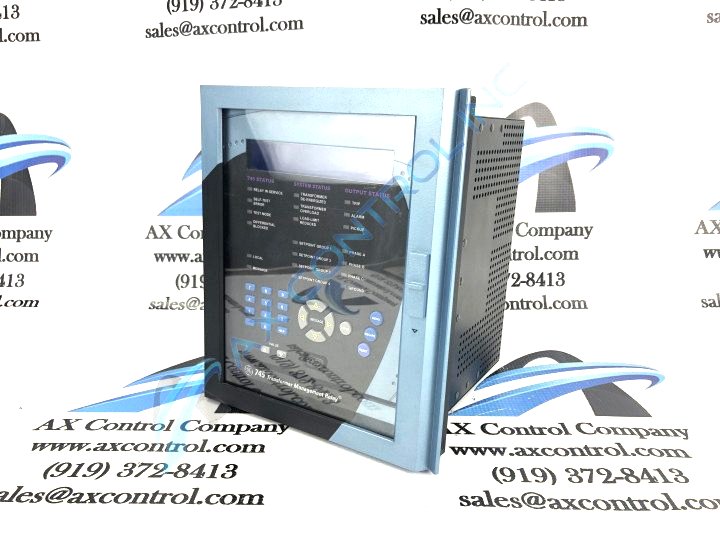

GE Multilin 745-W2-P5-G5-HI-A-L-R-E is a Transformer Protection System that manages and safeguards transformers of any size. The relay's FlexLogic technology increases versatility and decreases the need for auxiliary components and wiring. It can configure unique equations that provide customized outputs in the system.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 745-W2-P5-G5-HI-A-L-R-E to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 745-W2-P5-G5-HI-A-L-R-E
  • SKU: 745W2P5G5HIALREGM
  • Manufacturer: GE Multilin
  • Series: 745 Transformer Protection System

745-W2-P5-G5-HI-A-L-R-E Technical Specifications

Software Version EnerVista 745
Operating Temperature -40°C to +60°C

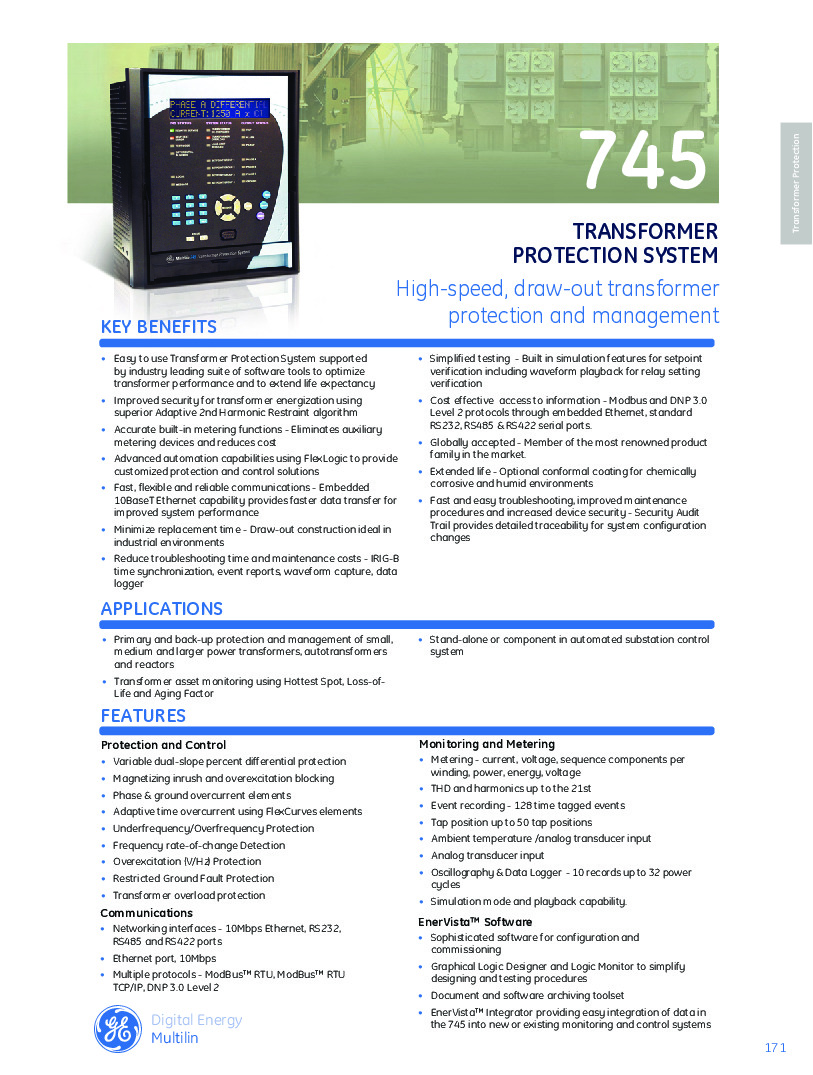

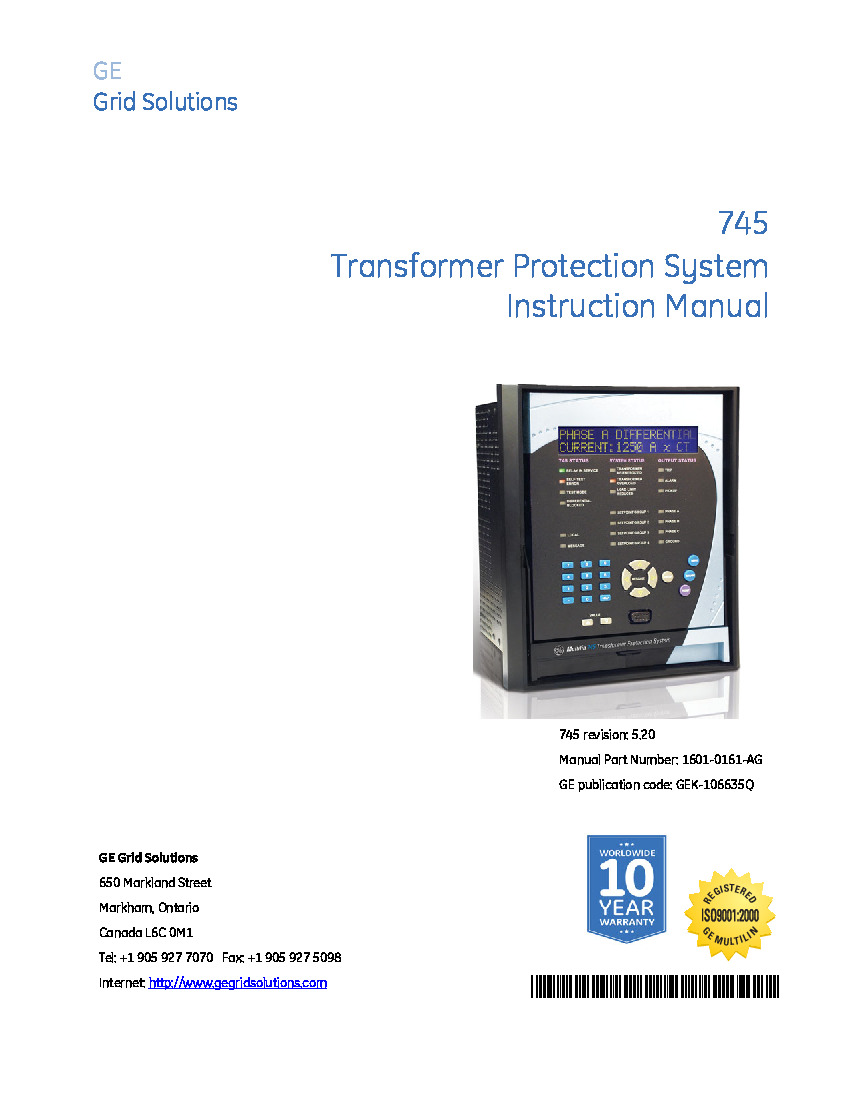

Manual 745 Instruction Manual 1601-0161-A7
Frequency 50 or 60 Hz nominal
Features Loss of Life Assessment and Enhanced Display Screen
Control Power Range 90 to 300 VDC; 70 to 265 VAC at 48 to 62 Hz

About the 745-W2-P5-G5-HI-A-L-R-E

Transformer protection and management is a difficult task, but GE Multilin 745-W2-P5-G5-HI-A-L-R-E’s adaptive features and system monitoring capabilities streamline the process with ease. Intended to work with transformer systems small to large, the 745 is a highly configurable transformer protection relay. Features such as adaptive harmonic restraint help maintain system security during inrush events. Users can also adjust how the relay interacts with the system by adding, removing, or editing setpoints, which are configurable settings that determine how the relay behaves. The 745’s FlexLogic™ technology increases versatility and decreases the need for auxiliary components and wiring, allowing the configuration of unique equations that provide customized outputs in the system.

The 745-W2-P5-G5-HI-A-L-R-E’s display screen is enhanced over the base model and is larger as a result. The screen is noticeably wider and the expanded keypad makes inputting and navigating the relay easier. The relay is 18lbs, 6oz when housed in the SR series chassis and approximately 10lbs, 8oz when removed from the case. This model can be mounted on a standard 19” panel and can be accompanied by another relay unit. Once the case is properly mounted, the user can add the 745 to its chassis and begin the wiring process. The back terminal of the 745-W2-P5-G5-HI-A-L-R-E contains a large number of ports to enable numerous and highly configurable connections, including sixteen logic inputs. The rear terminal’s RS485/RS422 ports is intended for systems using multiple relays and can easily connect computers running the relay’s EnerVista 745 computer software program; alternatively, computers running EnerVista can connect through the RS232 port on the front of the device for single relay monitoring.

Frequently Asked Questions about 745-W2-P5-G5-HI-A-L-R-E

What options come with the 745-W2-P5-G5-Hi-A-L-R-E Multilin protection system and what size of transformer can this part protect?
The 745-W2-P5-G5-Hi-A-L-R-E transformer protection system is designed to protect small, medium, and large sizes of power transformers.  These systems are made to have two windings per phase (as specified by W2 in the part number). This specific part number, 745-W2-P5-G5-Hi-A-L-R-E comes with many options. The A option indicates analog imputs and outputs. The L option includes a loss of life option. The R option has a restricted ground fault feature. The E specifies an enlarged LCD and an enhanced display feature.
Can you tell me more about the L, loss of life option of the Multilin 745-W2-P5-G5-Hi-A-L-R-E transformer protection system?
The loss of life option of the Multilin 745-W2-P5-G5-Hi-A-L-R-E transformer protection system is included in this part as indicated by the -L option found within the parent part number for this specific transformer management relay. The 745-W2-P5-G5-Hi-A-L-R-E loss of life option is limited by a pickup level of 0 to 20000 x 10 h. This figure is in steps of 1. This feature for the 745-W2-P5-G5-Hi-A-L-R-E is able to monitor the top oil temperature, the aging factor, the total loss of life that is accumulated, and the hottest stop within the transformer. Please note, these computed valves are to be used as a guide and are not an exact prediction of when the transformer's life will end.
