750-P5-G5-S5-HI-A20-R-T

About the 750-P5-G5-S5-HI-A20-R-T

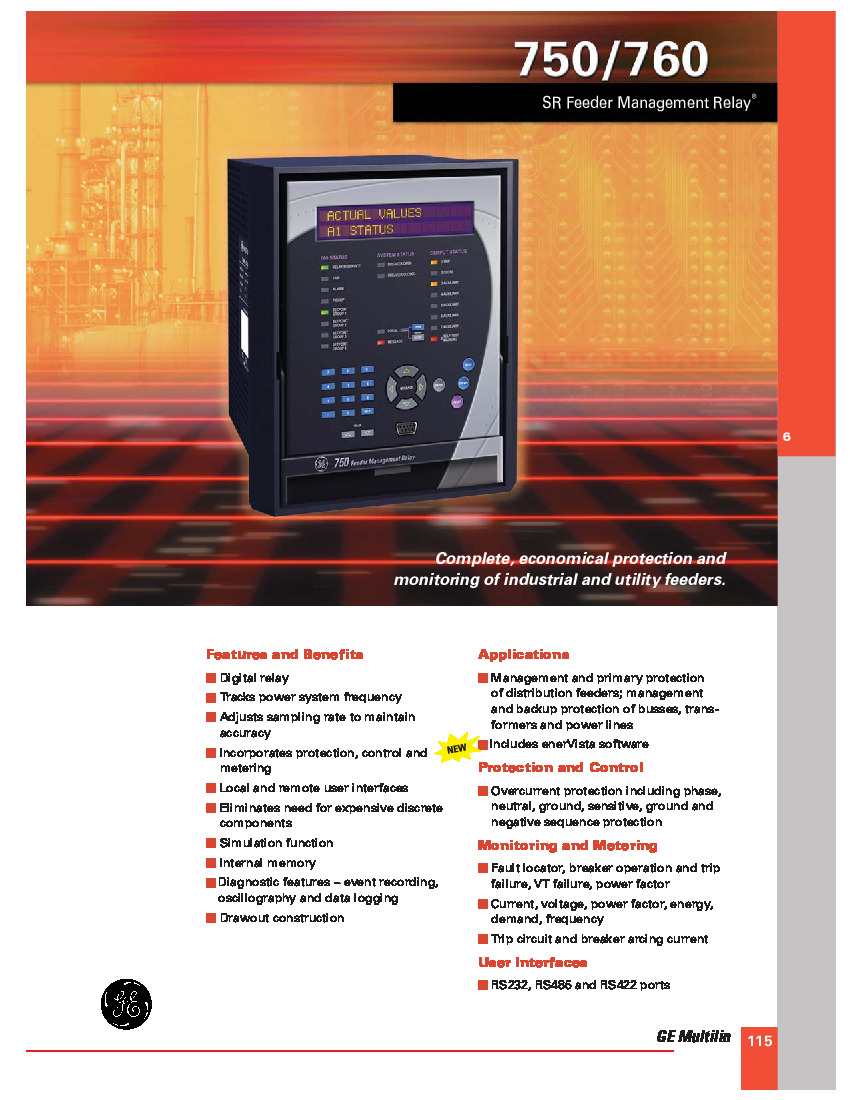

The 750-P5-G5-S5-HI-A20-R-T is a 750 Series Feeder Management Relay from GE Multilin.  This management relay is one of several available from General Electric in AX Control stock, ready to ship at a moment's notice.  We are happy to combine smaller components together in one shipping container if you prefer.

The 750-P5-G5-S5-HI-A20-R-T offers programmable setpoint menu navigation.  The keypad can be used to navigate through the menu on-site.  This offers direct access to metering, status, maintenance, trip counter, arcing current, and other settings.   It must be noted settings are used immediately as they are entered, so caution should be used when entering settings into an in-service relay.  However, the unit offers both hardware and passcode security features to lock out unauthorized changes.

The 750-P5-G5-S5-HI-A20-R-T can be used to define protection elements, gather system data, define output contact energizing, define breaker closure, and define breaker monitoring.  It can also perform monitoring functions like time delays, breaker timings, alarm and trip values, and minimum and maximum values.

The 750-P5-G5-S5-HI-A20-R-T is a 750 relay with 5 A phase current inputs.  The unit has 5 A zero-sequence current inputs as well as 5 A sensitive ground current inputs.  This unit is rated for 88 to 300 VDC control power or 70 to 265 VAC @ 48 to 62 Hz.    Additionally, the unit has Eight 4-20 mA analog outputs.

GE Multilin manuals will guide you through the installation, removal, or maintenance of this unit.  Please refer to this original documentation if you have questions about handling or other procedures.  AX Control can typically ship units like this one within a few hours of your order's arrival.  Some limited-item stock may require additional time.
