850-EP5NNG5HNNAANMASFB1ECNAN

About the 850-EP5NNG5HNNAANMASFB1ECNAN

Intro

The GE Multilin 850-EP5NNG5HNNAANMASFB1ECNAN is an 850 series feeder protection system. This unit is microprocessor-based and meant for use in managing and protecting distribution feeders, while also serving as a backup for buses, transmission lines, and transformers. This unit can either be set up manually or via the associated EnerVista software.

System Features

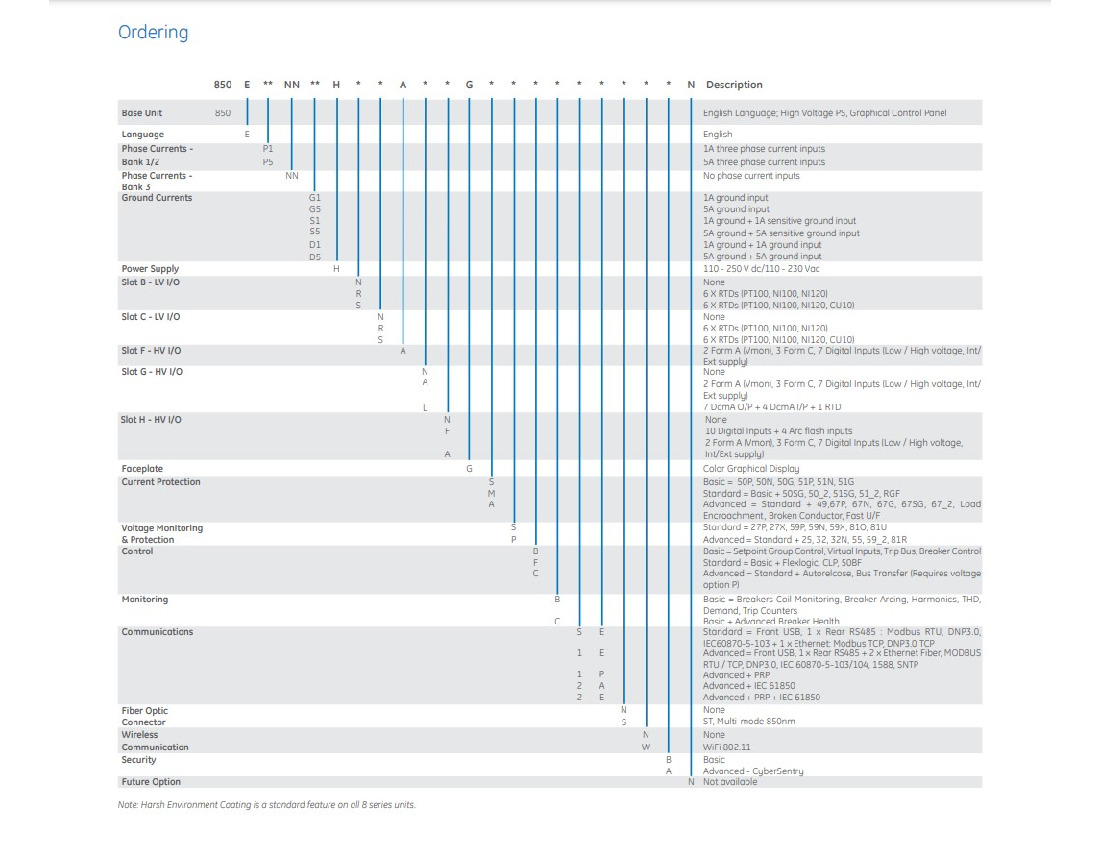

The 850-EP5NNG5HNNAANMASFB1ECNAN has certain optional features installed based on its part name. For example, this part has the advanced communications suite alongside other advanced features like the CyberSentry security. As with all the models in this series, the printed circuit board is covered with a conformal coating to help protect against harsh environments. This unit uses 5A inputs for both the ground input and the 3-phase current inputs. The power supply for this unit is 110-230VAC or 110-250VDC.

Additional Specifications

The 850-EP5NNG5HNNAANMASFB1ECNAN has a draw-out design that allows things like the power supply to be replaced in the field in case of an issue. This helps make repairs quicker and easier than having to send a unit in to a manufacturer. Additionally, aspects such as testing become much easier with a design like this. This unit was designed without electrolytic capacitors due to their high rate of failure. This improves reliability to allow for more continuous plant operations.
