About the CV-200C

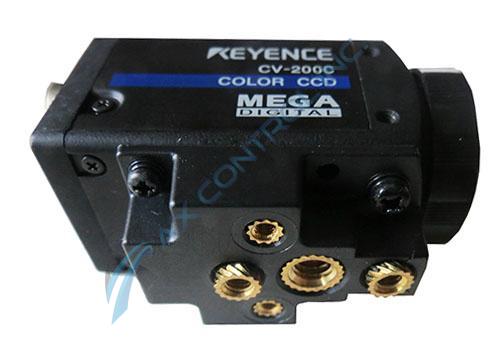

CV-200C is a 2,000,000-pixel Mega Digital color camera that is manufactured by Keyence as part of the CV-3000 series. The scanning system is progressive at 59 ms. The lens mount method is a C mount. This camera weighs approximately 110 grams. The transfer system is a digital serial transfer. This unit produces 1,920,000 valid pixels. The electronic shutter speeds are 1/15, 1/30, 1/60, 1/120, 1/240, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, and 1/20000. The relative humidity (non-condensing) should stay between 35 and 85%. The ambient temperature should not fall below 32°F.
The camera variations in the CV-3000 series are Mega Digital, Hi-Speed Digital, Super-Small Digital, and Ultra-Small Digital. Each of these variations comes in Color or Monochrome. These cameras have a lot of applications. They can measure the coplanarity of connector pins, confirm th positioning for silicon wafers, measure the notch position of a gear, measure metal material deformation, measure construction boards, measure the thickness of building materials, count beverage cans, count carton items, count ball bearings, check the seating of die protection parts, detect ink marks on a silicon wafer, check BGA solder balls, position a CCD device, position a robot arm, position LCD glass substrates, check the fit of body panels, check the position of labels, and detect the level of liquid in a bottle. Keyence manufactures the CV-3000 series as a multi-camera system, which allows for up to 4 simultaneously-running cameras on one controller (with the camera expansion unit).
