KV-C32T

About the KV-C32T

The KV-C32T is a thirty-two (32) extension transistor (sink) output unit by Keyence.   The external connection method for the KV-C32T is a MIL* specification connector. The KV-C32T has a load rating of DC thirty (30) V, zero point two (0.2)  A. The KV-C32T has a current leakage of one-hundred (100) μA or less when powered off. The residual voltage of the KV-C32T when powered on is zero point five (0.5) V or less. The KC-C32T has thirty-two points (32) with one (1) common way or two (2) terminals**. The common way for the KV-C32T is as follows: OFF to ON: ten (10) μs or less and from ON to OFF: two-hundred (200) μs or less. The internal current consumption for the KV-C32T is fifty-five (55) mA or less. The KV-C32T by Keyence weighs approximately one hundred (100) grams.

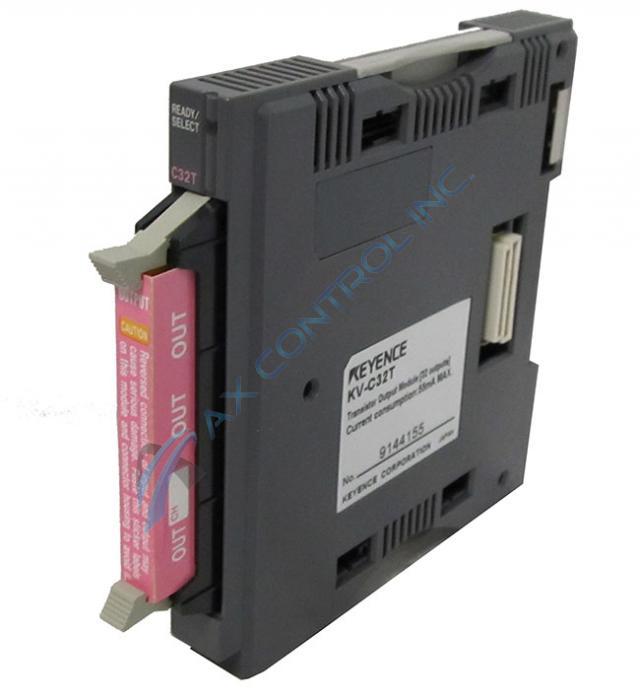

The Keyence KV-C32T is constructed of dark grey plastic and features a sleek slender design. The Kv-C32T features all around ventilation for proper air flow to all the device to cool down and run efficiently. The left side features a ready/select button as well as a large OUT port with light grey tabs. Towards the back of the device is a light grey Hirose Electric Connector for easy installation. The Keyence KV-C32T also features a sticker on the face of the device stating the company name, product name, and the products serial number.

 * MIL-C-83503 compliant
** KV-C32T*(P)and KV-B16T*(P) have 2 COM points, but internally they share a common circuit.
