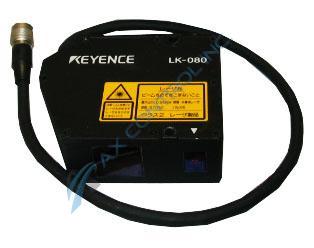

About the LK-080
The LK-080 model is a standard, small spot sensor head designed and manufactured by KEYENCE for the LK series. The LK-080 sensor head has been discontinued by KEYENCE. While they no longer supports this product or offers it brand new, AX Control may have the LK-080 sensor head in either refurbished condition or brand new from surplus stock. Call or email us today to inquire about the availability of this or any other product on our site.
The LK-080 sensor head has a variety of features that make it an essential part of your facility. The sensor head’s referring distance is 80 millimeters and the measuring range is +/-15 millimeters. The LK-080 sensor head’s light source is a red semiconductor laser. This laser is a Class 2 laser product (JIS C6802). It has a wavelength of 670nm (visible light) and an output of 0.95 mW at maximum. The LK-080 sensor head’s spot diameter is approximately 70 µm at a standard distance, the linearity is +/-0.1% of F.S., and the repeatability is 3 µm.
The LK-080 sensor head’s analog input has a voltage output of +/-5 V (3 µm/mV), a current output of 4 to 20 mA (350 Ω maximum), and an impedance of 100 Ω.
In addition to a sensor head’s normal functions, the LK-080 sensor head has the following functions: Auto-zero, gain switching, span and shift adjustment, response switching, and analog output holding (whenever an alarm occurs).
The LK-080 sensor head is made of an aluminum die-cast material and weighs approximately 385 g, including the device’s cable.
