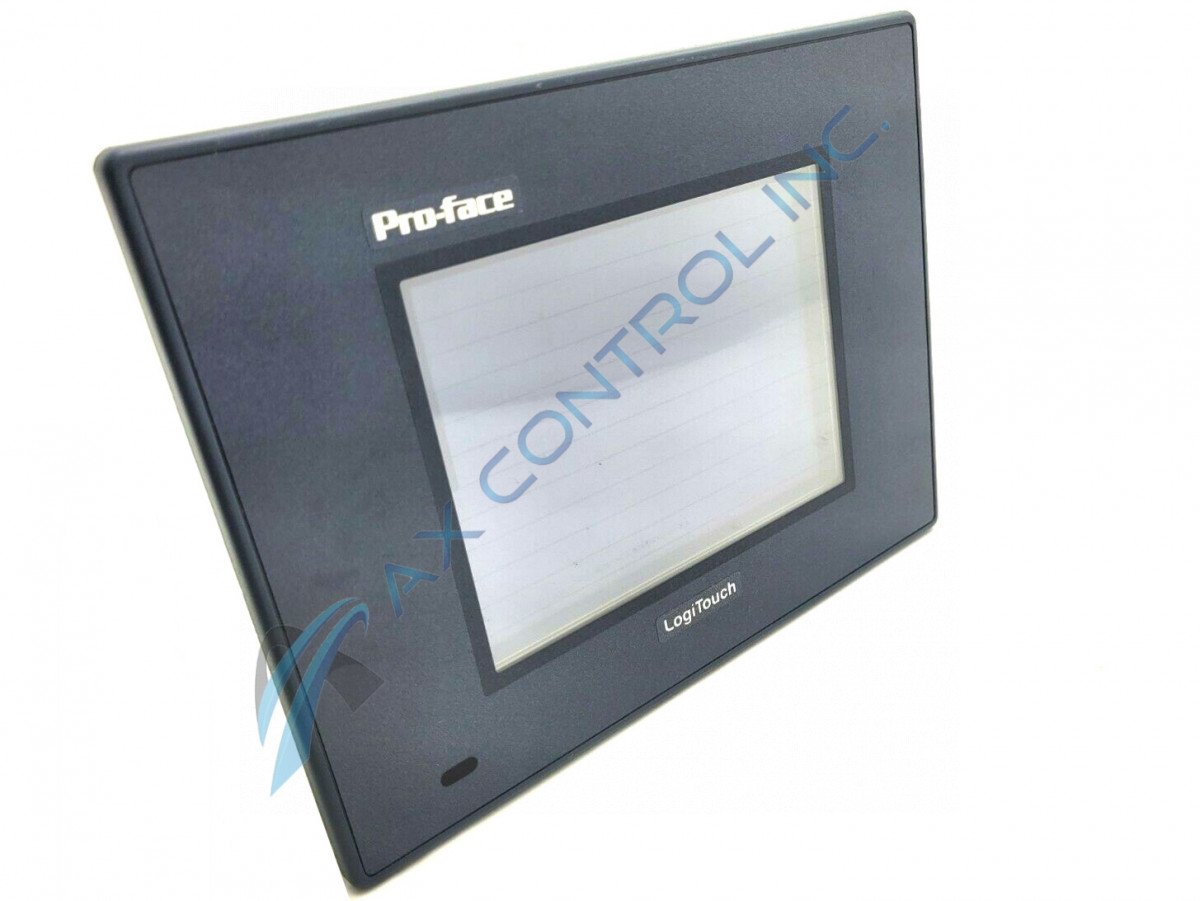

GLC150-BG41-XY32SK-24V

About the GLC150-BG41-XY32SK-24V

The GLC150-BG41-XY32SK-24V is one of Pro-Face Xycom s low-cost graphic logic controllers. The LT series was designed as an HMI with connectors to offer versatile graphic control on your factory floor. This series has been available for over two decades. The GLC150-BG41-XY32SK-24V is a Type A1 5 7 inch HMI with a blue and white display. The unit is UL listed and CE marked. The display is used to show controller and user-made screen data and is fronted by the integrated touch panel. This panel allows users to input data operations. The rear of the unit includes a power input terminal block for the connection of DC power cable connections, a stop/run switch, and an alarm output. This output turns off or releases contact when a watchdog error occurs. There is also an I/O connector and a tool connector located on the side panel of the unit. The GLC150-BG41-XY32SK-24V has a rated voltage of DC24V with a voltage supply range of 20.4 to 28.8 V. The unit is designed for operation within temperatures of zero to 50 degrees Celsius when the relative humidity range is 10-90%, non-condensing. The unit is 2.98 inches deep by 8.15 inches wide by 6.18 inches tall. Additional information regarding the installation, application, and maintenance of the GLC150-BG41-XY32SK-24V may be found through original documentation from Pro-Face like data sheets and user guides. Manuals from the company will have specific information regarding handling and proper wiring that should be read before you unbox your part.
