GLC150-SC41-ADPK-24V

About the GLC150-SC41-ADPK-24V

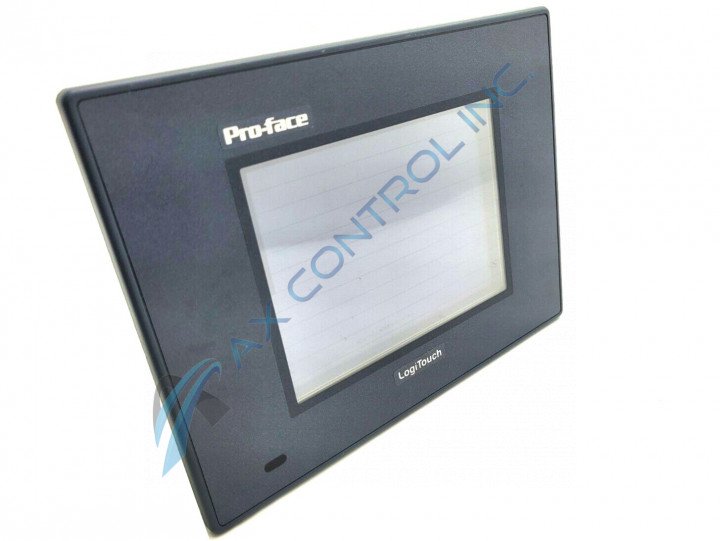

The GLC150-SC41-ADPK-24V is a type H1 5.7 inch STN (64 colors) LT series, stand-alone graphic logic controller. This machine is designed as a human-machine interface with discrete I/O built-in for integrated control. This unit is ideal for such applications as process monitoring applications using its analog inputs and outputs, temperature monitoring, and distributed I/O applications. The unit is not built for data logging or sharing, for compact flash data storage or backup, or to support multi-media features. This unit is built with 2 analog lines in and two out, a PT100 connector, and a 32 DIO sink type board. It is designed to function using a 24 VDC power source. The GLC150-SC41-ADPK-24V has an effective display area of 118.2 by 89.4 mm. The CFL backlight has a lifespan of more than 36k hours when continuously lit. The unit has eight levels of contrast adjustment available through the touch panel. This unit supports several language fonts including ASCII, simplified Chinese, Japanese, Korean, and traditional Chinese. The control memory of the GLC150-SC41-ADPK-24V is built with 128KB of Flash EPROM program area and 32 KB of SRAM variable area. The unit's internal clock has a monthly accuracy of +/- 65 seconds at room temperature. The DIO input has a rated current of 9 mA (IN0, IN2, IN4, IN6) and a rated current of 5 mA for other inputs. For more important information regarding the use and installation of the GLC150-SC41-ADPK-24V, please refer to manuals or user guides from ProFace Xycom. We may have copies of these documents available.
