GLC150-SC41-ADTK-24V

About the GLC150-SC41-ADTK-24V

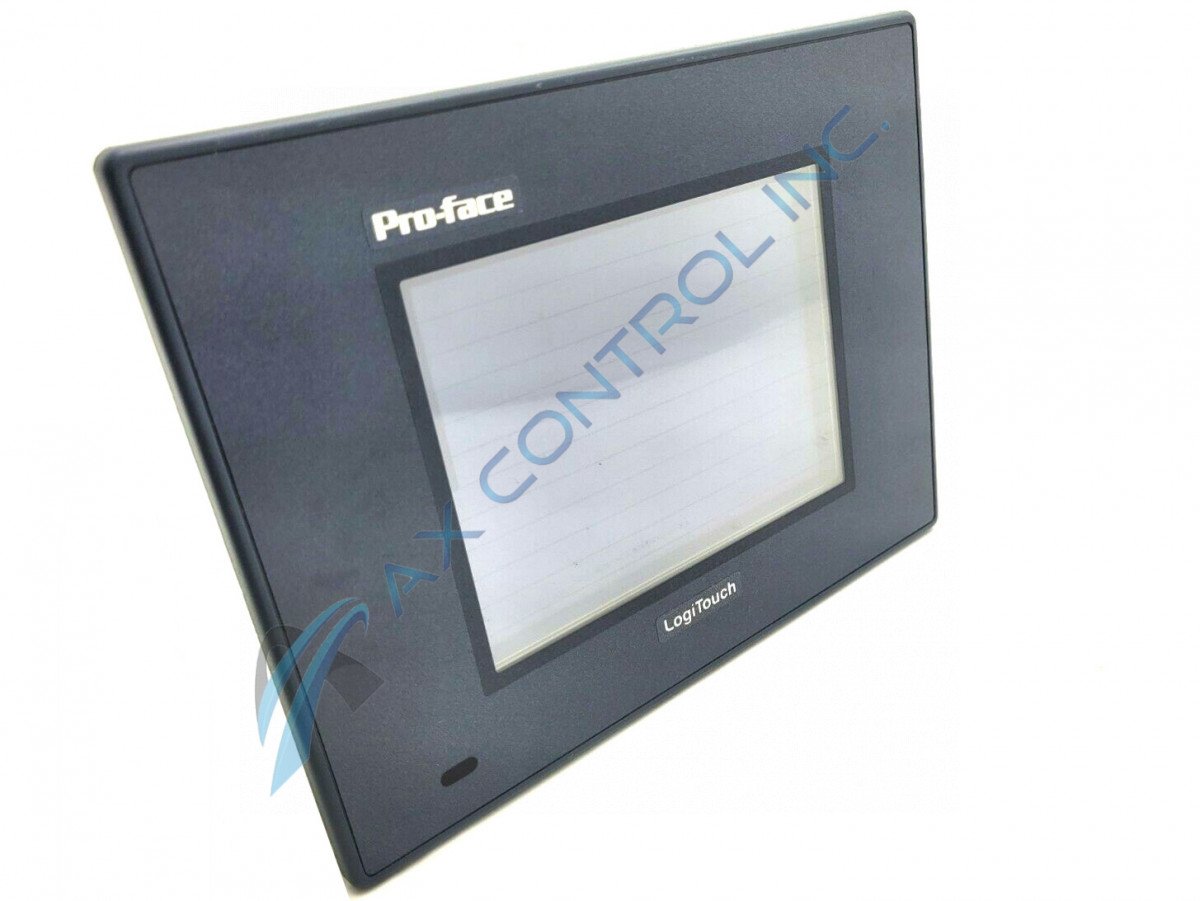

The GLC150-SC41-ADTK-24V is an STN Color H1 type graphic controller from ProFace. This unit is built with 2 analog lines in and out as well as a thermocouple temperature input and a 16 in/16 out sink-type board. The front-panel display touch screen is 5.7 in size. The GLC150-SC41-ADTK-24V includes a Thermocouple input. Input range varies according to the type of thermocouple attached. With J-type thermocouples, the input can handle a measurement range of -100 to +700 Celsius and temperature conversion data of -1000 to +7000 degrees Celsius. On K-type thermocouples, this is extended to a temperature range of -100 to +1200 degrees Celsius measurement range and -1000 to +12,000 degrees Celsius conversion data. The thermocouple is accurate to +/-1% along its full scale. It has three input channels that are not insulated from channel to channel but use photocoupler insulation from the input port to the internal port. ProFace manuals have information about input-output characteristics and error detection. Thermocouple lines must be wired separately from other lines like high current, inverters, power, or high-frequency lines. Also, the compensating conductor is polarized, so you must be sure to connect it correctly or temperature readings will not be accurate. More information about the GLC150-SC41-ADTK-24V can be accessed through OEM publications like datasheets, user guides, and product manuals. Please read all warnings and cautions in these publications before unboxing your equipment for installation. Our company works hard to maintain on-hand stock of our products so we can better serve you. Orders received before 3 pm for in-stock products will typically be boxed and shipped that day.
