GLC150-SC41-XY32SK-24V

About the GLC150-SC41-XY32SK-24V

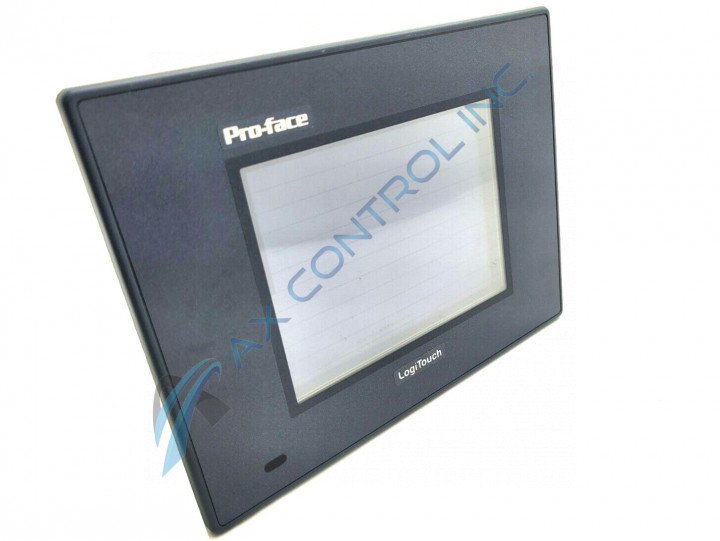

The GLC150-SC41-XY32SK-24V is an LT series graphic controller from ProFace. This HMI with control connection options has a small HMI touch screen interface and is designed for use within industrial settings where a commercial machine might not offer enough reliability. The GLC150-SC41-XY32SK-24V has a 6 inch STN Color panel. It is designed with a 16 in/16 out a sink-type board and uses a 24 VDC power source. The unit is CE marked and is also UL approved. The GLC150-SC41-XY32SK-24V is a TYPE A1 LT unit. This unit is 207 mm by 157 mm by 75.8 mm. It has a rated voltage (input and output) of DC24V. The unit has one common line and uses photocoupler isolation. The maximum load voltage for outputs is 0.2A/point and 1.6A/common with an output voltage drop of 2.5Vor less. The GLC150-SC41-XY32SK-24V has an internal 3.5A 125V chip fuse that cannot be replaced and uses diodes for surge control. The user should thoroughly read through original ProFace LT manuals before performing any kind of program change, forced output, or using the Stop, run, or pause commands on the running unit. Accident or equipment damage may result if these operations are performed improperly. Additionally, it is important to keep wiring remnants or metal shavings from falling inside the unit during maintenance procedures, as these may cause accidents, fire, or malfunction. Additional important information regarding the proper handling and installation of this equipment can be sourced through user guides, datasheets, and manuals from ProFace.
