GP-4401WW

About the GP-4401WW

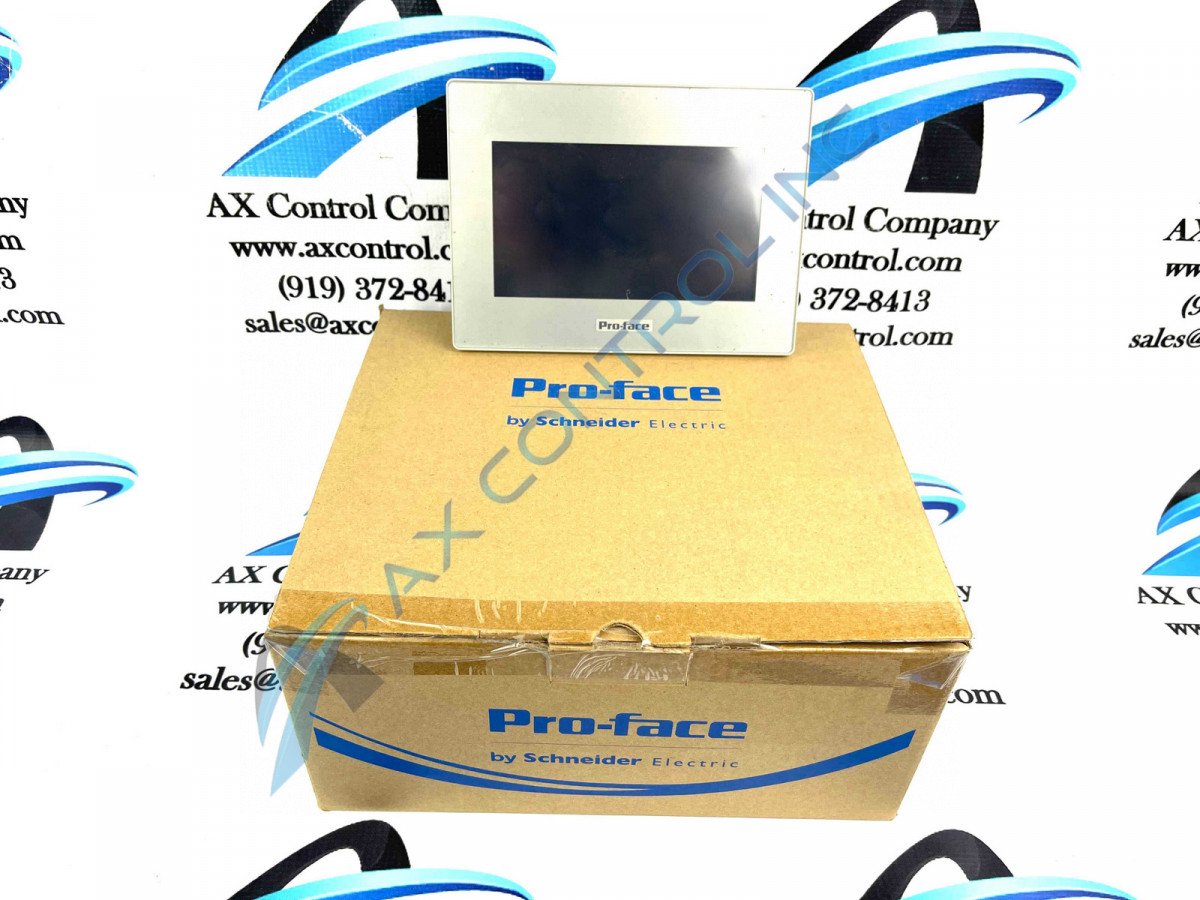

The GP-4401WW is a 7.0-inch touch screen interface from Pro-face Xycom/Schneider Electric.  The unit features an energy-efficient LED display with up to 65,536 colors on a high-resolution TFT display.  The backlight control offers eight levels of brightness and contrast that can be controlled via software.  AX Control maintains a large inventory of Pro-face HMIs within our warehouse to quickly fulfill your orders.

The GP-4401WW supports up to two protocol drivers.  It has a 10/100 base-t ethernet interface along with two USB ports, an SD card interface, and serial COM ports.   This allows the updating of screen data through a data transfer tool.  The ethernet port multi-link function allows additional sub-displays to be added without changing control device configurations.

This unit has a display area of 152.4 x 91.44 mm.  Its external dimensions are 218 x 174 x 60 mm.  The GP-4401WW is designed for panel mounting using natural air circulation to provide proper cooling.  Be sure to read installation instructions in the associated manuals and user guides in order to maintain this airflow.  Otherwise, the unit may overheat.  It should be used in locations where the operating temperature remains between zero and 50 degrees Celsius.

The GP-4401WW has a power consumption of 12 W or less and is rated for an input voltage of DC24V.  It is UL listed and CE marked.

This information is provided as an introduction to the GP-4401WW.  For a more detailed look at the unit, please be sure to read through original documentation like manuals or user guides.
