GP570-TC31-24V

About the GP570-TC31-24V

GP570-TC31-24V is a 10.4-inch touch screen HMI panel from Pro-Face.  This HMI panel is a TFT color LCD that has eight colors (white, red, blue, green, yellow, purple, light blue, and black) tiling patterns that make blends of these colors possible. The panel uses a one MB flash EPROM for application memory. The cooling system for this panel is natural airflow so the panel must be installed in an area that is free of corrosive gases.

The GP570-TC31-24v has a vibration endurance of ten to twenty-five Hz from various directions for up to thirty minutes, and a voltage endurance of AC 1000V 10mA for one minute. The insulation resistance is measured between the live wire and the ground terminals at above 10M Ohms at DC 500V.  The input voltage for the GP570-TC31-24V is DC 19.2V to DC 28.8V. The unit can withstand an ambient humidity of thirty to eighty-five percent RH as long as it is non-condensing.

The unit can be stored in a temperature range of negative ten degrees Celsius to sixty degrees Celsius. Normal operation can occur between zero degrees Celsius and forty degrees Celsius.

The nominal display area is 211mm (W) x 158mm (H) and has a resolution of 640 x 480 pixels. The panel has a reverse or blink style video feature.

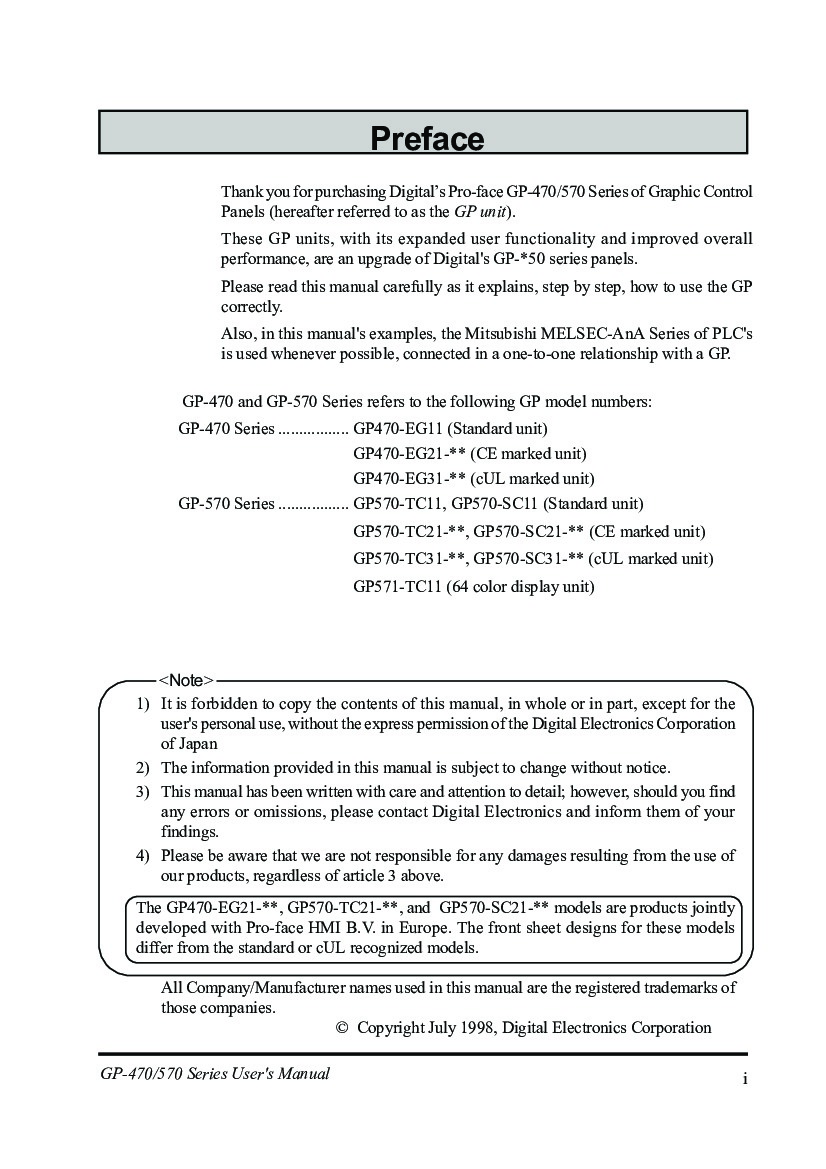

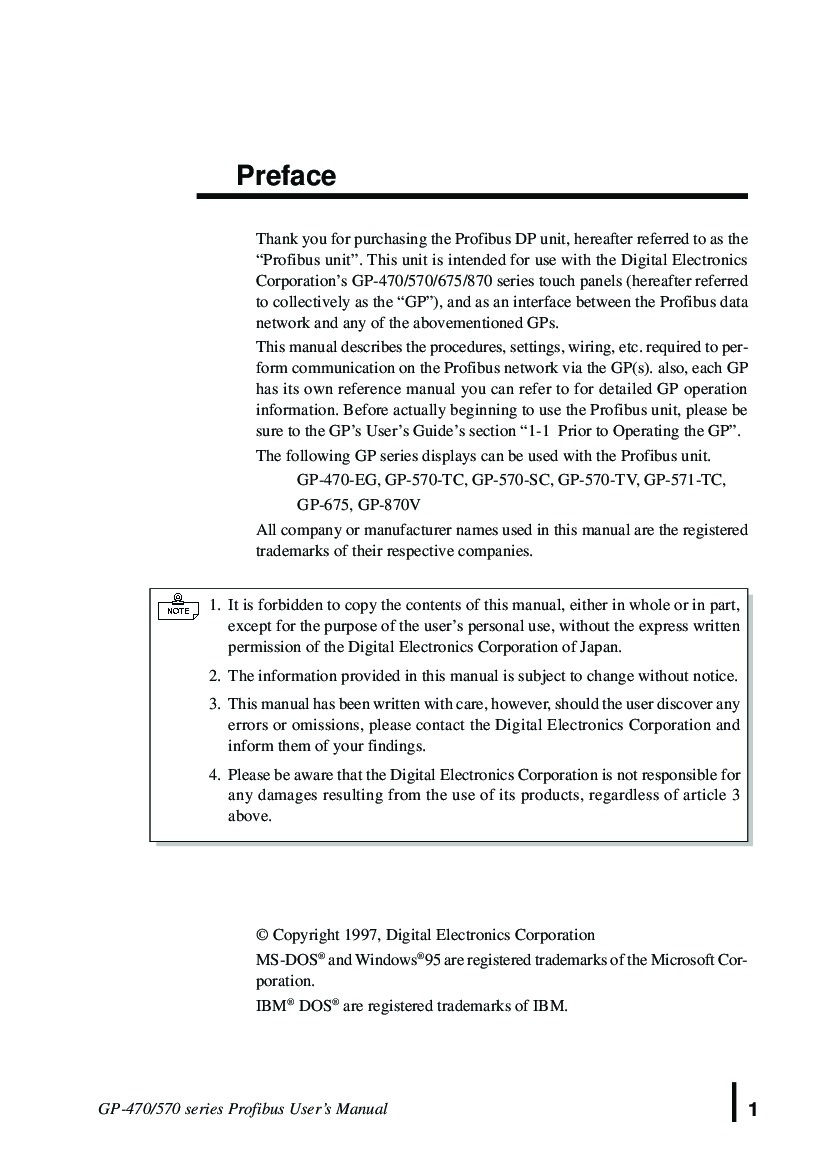

Look to Proface HMI user guides and manuals for more details about the GP570.  Such documentation will also specify the different kinds of Proface HMI software that works with this particular model, and how best to configure your Proface HMI.
