AGP3650-T1-D24

About the AGP3650-T1-D24

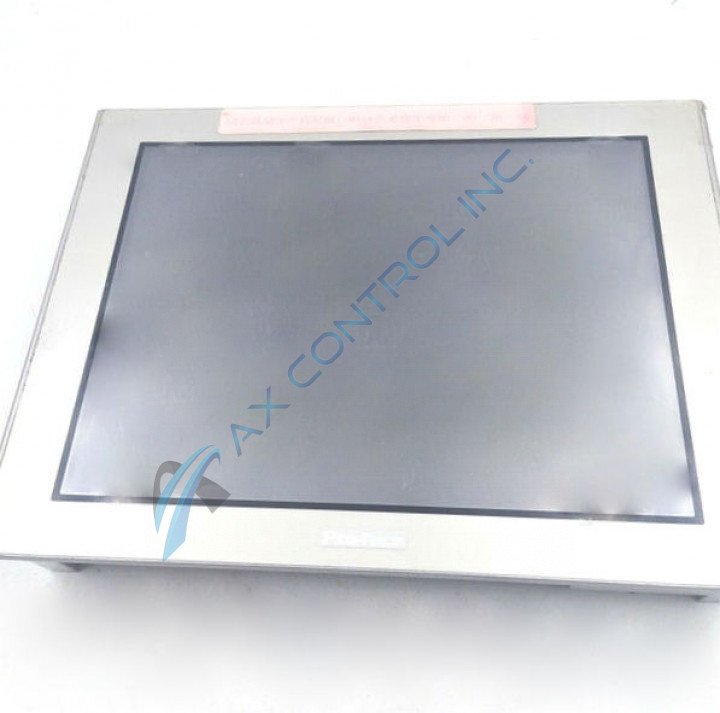

The AGP3650-T1-D24 is a 12.1-inch TFT Color GP 3000 human-machine interface.  This unit is sometimes referred to by its global code PFXGP3650TADC.

The rear panel of this unit includes multiple interface ports along its bottom third.  This includes a CF card slot, two USB type-A ports, auxiliary I/O for remote reset and alarms and buzzers, as well as a speaker output.  The unit also has a sound output and an expansion unit connector point.

This unit requires a 24 VAC power supply.  The HMI is built on a 64-bit RISC 266 central processing unit.  This gives users faster screen refresh and sampling than other HMIs made around the same time.   The HMI can support as many as four different protocols at the same time.  It supports several different language fonts including Japanese and English.

The TFT Color LCD touch panel offers full color (65K) with 800 x 600 pixel SVGA resolution.  Brightness can be adjusted to eight different levels through the touch panel.   This unit does not offer contrast control.

Use the AGP3650-T1-D24 in locations where the ambient temperature remains between zero and 50 degrees Celsius.  Ambient humidity should remain between 10 and 90%, non-condensing.   This unit offers vibration resistance compliant to IEC61131-2.  Refer to associated data sheets and manuals for more information on this and the unit’s noise and electrostatic discharge immunity.
