AGP3750-T1-AF

About the AGP3750-T1-AF

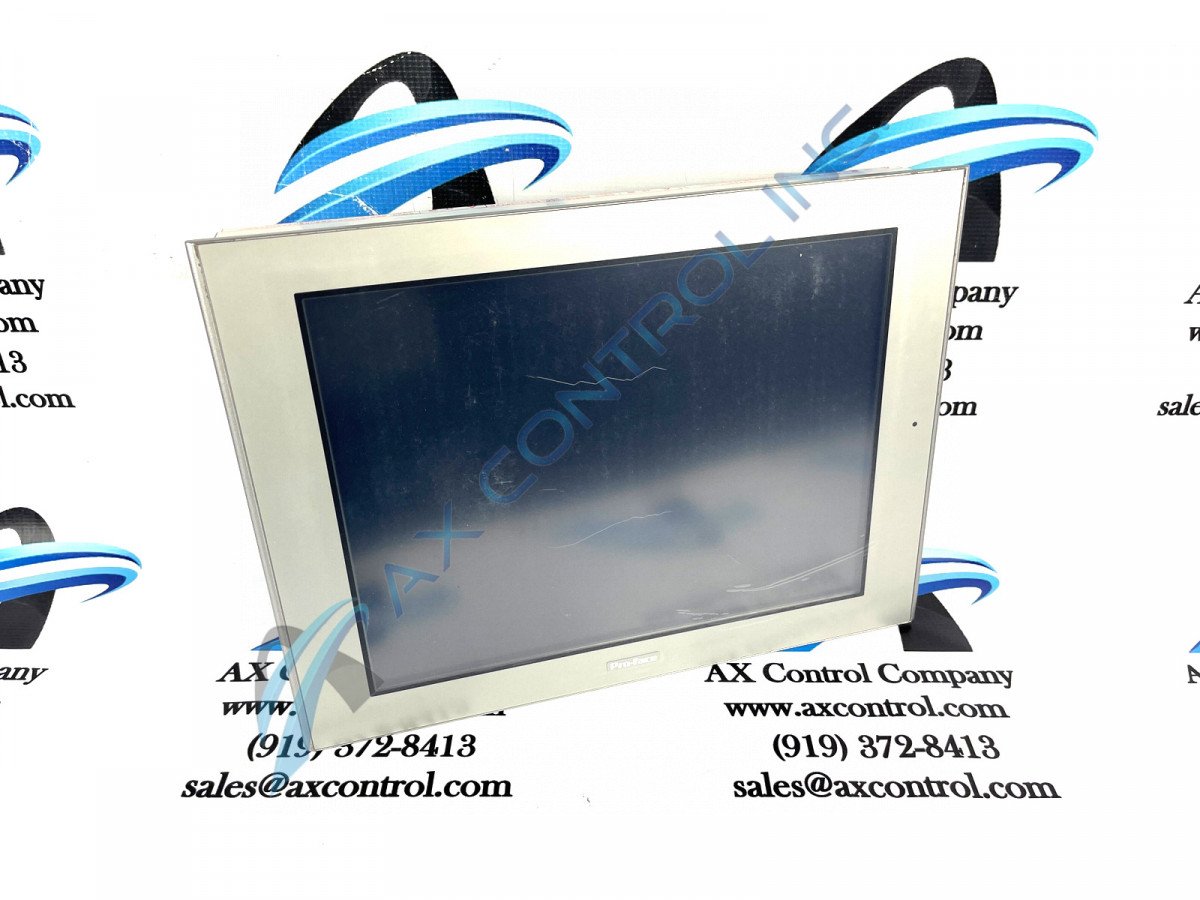

The Pro-Face Xycom AGP3750-T1-AF is a 15” multimedia touchscreen operator interface that is a part of the GP-3000 series. An advanced HMI, it is able to simultaneously support up to four protocol drivers. The 64-bit 266 Mhz CPU and 8 MB FEPROM of available memory in AGP3750-T1-AF allow for a high-speed system that works 10 times faster than a conventional interface. The system speed offers quick screen refresh rates and data sampling.

A no-grid resistive analog film covers the touchscreen to keep the 1024x768 resolution clear. Capable of supporting 65,536 different dynamic colors, the image on AGP3750-T1-AF is highly visible allowing for exact part placement.

As it runs multiple drivers at once, AGP3750-T1-AF has the capability to function as a single screen monitor and data collector. With the use of scripting tools, the system is capable of interfacing with a variety custom controllers as well. As a multiport HMI, a number of communication interfaces are supported by the system. A 10/100 base-T ethernet interface (LAN) hookup is included, as well as two USB ports with a communication range of up to 5 meters. Two serial MPI ports are located on either side of the HMI, with the RS-422 port capable of supporting 16 different devices. These supported devices include barcode scanners, motion controllers, inverters, and regulators. AGP3750-T1-AF also supports CompactFlash ™ card access. The access is located behind the CF Card Access cover, which must be closed when reading or writing to the card.

Direct video and audio inputs allow for microphone and camera interfaces on AGP3750-T1-AF. An AUX discrete output is able to run the included alarm and buzzer outputs while an AUX discrete input is able to run the included remote reset input.
