PFXXM4300TP

About the PFXXM4300TP

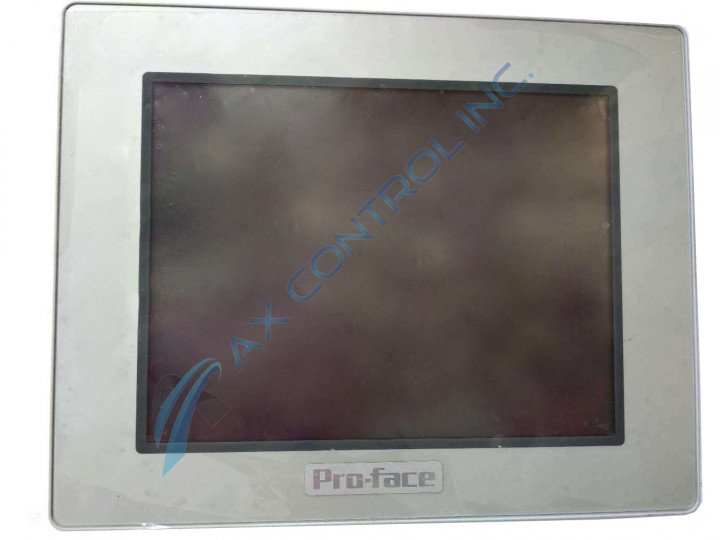

The PFXXM4300TP is a 5.7 inch HMI display panel. This analog touch screen panel is part of Pro-face by Schneider Electric’s LT4000M  Series. At 5.7 inches, this unit is the larger of the two display panels in this series. It has a TFT Color LCD screen with a resolution of 320 x 240 pixels (QVGA).

Display panels in this series are designed to be versatile and effective for the user. The brightness of the PFXXM4300TP display can be adjusted to 16 levels, or the white LED backlight can be turned off completely with the on/off control. When the LCD is viewed outside of the specified viewing angle, users may notice differences such as unevenness in some images. This is considered normal. It is also normal for an after-image to appear if the same image is displayed for an extended period of time. This may be fixed by turning the unit off, waiting 10 seconds, then restarting it; but it’s recommended that the same image is not displayed for too long as a preventative measure instead.

This panel is compatible with several rear modules in the LT4000M series, which are powered by GP-Pro EX software, version 3.12 or newer. This software supports several language fonts including Cyrillic and ASCII. These fonts can be expanded up to 8x their original size for easy, comfortable viewing on the 5.7” inch display screen of the PFXXM4300TP.

On this unit, there is a single rear port for connecting the PFXXM4300TP to a rear module. If this panel is to be used with a rear module that is attached to a DIN rail, the use of a separation cable is necessary to allow the display panel and the rear module to be installed separately.

Additional specs as well as details on compatible rear modules and cables, installation guidelines, and other requirements for the safe, smooth operation of the PFXXM4300TP can be found in the Pro-face LT-4201TM/4301TM Hardware Installation or User Manual.
