PS3711A-T42-24V

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product

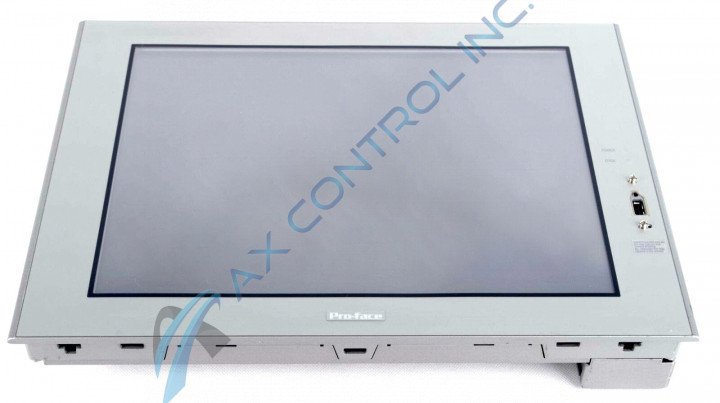

The PS3711A-T42-24V is a 24VDC Input TFT Color LCD Human Machine Interface manufactured by Proface. It is a 15" Display that features a ULV Intel Celeron 1 GHz CPU.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a PS3711A-T42-24V to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3711A-T42-24V
  • SKU: PS3711AT4224VPX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3711A-T42-24V Technical Specifications

CPU Celeron ULV Intel 1.0 GHz
Display Colors 262,144 Total Colors
Display Type TFT Color LCD Display
Enclosure Type Equivalent to IP65f (JEM 1030) NEMA#250 TYPE4X12
Input Voltage DC24V
Manufacturer Pro-Face
Model Number 3580301-11
Power Consumption 90W or Less
Resolution 1024 x 768 XGA
Screen Size 15 inch
Slot Type 2 PCMCIA Type II / 2 LAN Ports
Software GP-Pro EX
Weight ~6.0kg (13.2lbs)

About the PS3711A-T42-24V

The PS3711A-T42-24V is manufactured by Proface, now owned by Schneider Electric, and functions as a 15 inch HMI with a TFT Color Display. It has four (4) levels of brightness control that can be set by the user depending on the location of installation. These brightness settings are modified using the Proface GP-Pro EX and WinGP Software. The PS3711A-T42-24V features the following ports/connections:

  • Qty 2 Serial Ports (RS-232C) that are labeled as COM1 and COM2
  • Qty 2 Ethernet Ports (Modular Jack RJ-45) that are identified as LAN1 and LAN2
  • Qty 1 USB (USB 2.0) indicated by Type-A
  • Qty 1 Keyboard Connection

The Pro-face PS3711A-T42-24V also has speaker output built into the HMI that can be used via a mini-pin jack connector. Various sounds are built in to inform the user as they utilize the touchscreen. The PS3711A-T42-24V is also identified by the global code PFXPS37N3D with additional documentation related to this model available on the Pro-face website. Please feel free to contact AX Control to get immediate pricing for our current stock and repair pricing. Our sales representatives will be happy to assist. This HMI will come with the AX Control 3 Year Warranty.

Reviews For PS3711A-T42-24V

Internal Review
(5.0)

With a 15 inch TFT Display and an abundance of parts for this unit on the market, long term ease of use and future repairs are almost guaranteed. For domestic companies, this is the absolute peak of performance you can get from this series. - AX Technician

Repair Services For PS3711A-T42-24V

Type Lead Time Price Action
Repair Service 1-2 weeks $573

Our highly skilled technicians can repair your PS3711A-T42-24V. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

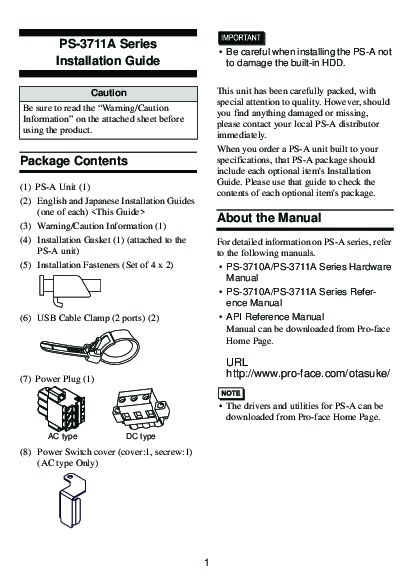

PS3711A-T42-24V Manuals, White Papers, Data Sheets, and Troubleshooting
