PFXSP5790WAD

About the PFXSP5790WAD

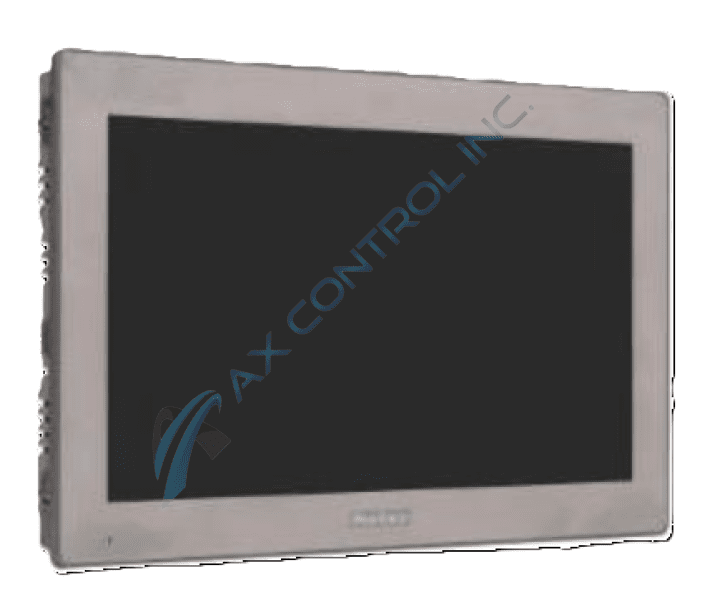

Model PFXSP5790WAD is a large Pro-face display monitor from the SP5000X Series of HMI families. It has a display size of 15.6 inches wide, and utilizes a resistive film touch panel. The touch panel has a 1,024 x 1,024-pixel resolution. Display model PFXSP5790WAD has a resolution of 1,366 x 768 pixels and 262,144 display colors. Brightness control levels range from 0 to 100. This unit's white LED backlight has a service life of 50,000+ hours. This product weighs less than a combined two pounds. The display weighs .49 pounds, while the rear part of the model weighs .6 pounds.

It should be kept free of corrosive gases, and always be cooled off through natural air circulation. Other methods can damage the monitor. The in-rush current of this model is 30 A or less, and it consumes up to 48 watts of power. The rated input voltage is between 12 and 24 Vdc, and the insulation resistance is 500 Vdc. Model PFXSP5790WAD has been discontinued by Pro-face, but it can be bought or sold through AX Control. They also repair these models.
