Reliance Electric AutoMax 45C302 Serial Communications Processor 45 C 322

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 45C322 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 45C322
  • SKU: 45C322RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

45C322 Technical Specifications

Manufacturer Reliance Electric
Series AutoMate PLC
Part Number 45C322
Product Type Power Supply Module

Product Description

The 45C322 unit is a power supply module that Reliance Electric was responsible for bringing to the market. The 45C322 power supply’s production has been halted, but AX Control may still have this device in stock. Be sure to contact us if you are in need of the 45C322 power supply so you can check on its availability.

The 45C322 power supply has an Amperage rating of 50 Amps, a Voltage rating of 120/240 Volts, and 50/60 Hertz. The 45C322 power supply has a total of 3 card slots.

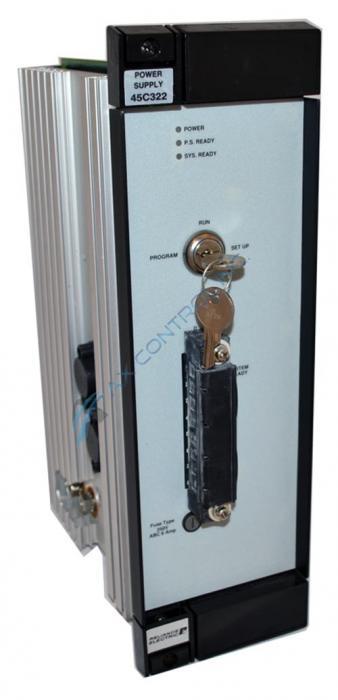

The 45C322 power supply is a single circuit board that is housed within a plated steel and anodized aluminium heat sink enclosure. This module has voltages that are designed to provide power to the module logic circuitry with the connected rails. In addition to that, the voltages are also provided to power to the logic circuitry contained onto the cards which have the ability to be placed directly inside of the card rack.

On the faceplate of the 45C322 power supply, there are three LED status indicators. The first status indicator light is labeled as the “AC POWER ON” light. When this light is on, it indicates that incoming power is being supplied to the power supply that is within the specified ranges. The second status indicator is labeled as the “POWER SUPPLY READY” light. When on, this indicates that the power supply is producing the required voltages within the specified ranges. Lastly, there is the status indicator labeled “SYSTEM READY.” When on, this light indicates that there are no faults within the system.

The 45C322 power supply has a total weight of 8.85 lbs. or 4.01 kg.

Frequently Asked Questions about 45C322

What does 45C322 do?
45C322 provides all of the voltages necessary to power the logic circuitry contained on the cards inserted in the card rack.
What makes power wiring easier on a Reliance 45C322?
45C322 has a terminal strip on the 45C322 card faceplate for to make input power wiring easier.
What type of protection does 45C322 have?
45C322 has overvoltage protection and 45C322 has overcurrent protection.
