57C410

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.90 (10)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.90 (10)
  • Click a star to rate this product
Reliance Electric Automax Analog Output Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 57C410 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 57C410
  • SKU: 57C410RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

57C410 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 57C410
Product Type Analog Output Module

About the 57C410

The 57C410 is an Output Module made by Reliance Electric. There is a strong probability that this module could have been created by Asea Brown Boveri or Baldor Reliance. It just all depends on when this item was in production. The original manufacturers are not supporting the 57C410 anymore and it may be difficult to find. AX Control does try to keep this module in stock. Please check our website for the availability status of the 57C410.

The 57C410 was created as part of an AutoMax Distributed Control System as an Isolated Analog Output Module. The primary purpose of this particular product was to provide an indication of procedures and to record output signals in a multichannel system. Using this signal the system had the ability to control the loop. The module had a D/A resolution that was 12-bit, an output that you could select the voltage or current levels, and four output channels that were analog. This module had a configuration that allowed for channel-to-channel and logic-to-channel setups. It also had an isolation level of 2500 volts.  The system also had an output filter that was rated as 100HZ and was the first-order lowpass. This module had the ability for analog current and voltage signals to be available per channel.

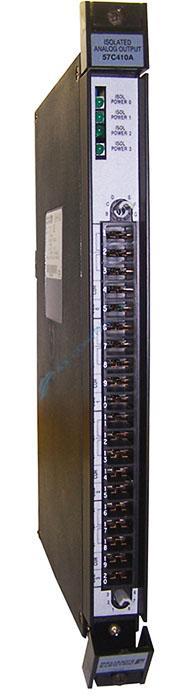

The 57C410 could be plugged into an AutoMax Multibus Remote Rack or into a Master Rack. It was a circuit card that came with a faceplate and a durable chassis. On the storage rack, there were female card slots that the 57C410 could be slid into. Once you slide it into the rack, then you could attach it to the rack.

Frequently Asked Questions about 57C410

What type of output filter does 57C410 have?
57C410 has a 100Hz first order lowpass output filter.
What type of isolation voltage does 57C410 have?
57C410 has logic-to-channel and channel-to-channel isolation voltage. The isolation voltage on 57C410 runs at 2500 VAC RMS.
How many channels does 57C410 have?
57C410 has four analog output channels
What does 57C410 provide output signals for?
57C410 provides output signals for loop control, process indication, and recording. 57C410 provides multichannel variable output signals for these.
  • 57C410-1
  • 57C410-1A
  • 57C410-1B
  • 57C410-1C
  • 57C410-1E
  • 57C410-1F
  • 57C410-1J
  • 57C410-1K
  • 57C410-1R
  • 57C410-2
  • 57C410-2A
  • 57C410-3
  • 57C410-4J
  • 57C410A
  • 57C410B
  • 57C410C
  • 57C410D
  • 57C410E
  • 57C410F
  • 57C410G
  • 57C410H
  • 57C410I
  • 57C410J
  • 57C410K
  • 57C410L
  • 57C410M
  • 57C410N
  • 57C410O
  • 57C410P
  • 57C410Q
  • 57C410R
  • 57C410S
  • 57C410T
  • 57C410U
  • 57C410V
  • 57C410W
  • 57C410X
  • 57C410Y
  • 57C410Z

Repair Services For 57C410

Type Lead Time Price Action
Repair Service 1-2 weeks $310

Our highly skilled technicians can repair your 57C410. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

57C410 Manuals, White Papers, Data Sheets, and Troubleshooting
