DC3N-12D-00-010-AN

Name: DC3N-12D-00-010-AN
Brand: Reliance Electric
SKU: DC3N12D00010ANRE
Price: 446 USD
Availability: LimitedAvailability
Rating: 5 (3 reviews)

5.00 (3)
Click a star to rate this product

5.00 (3)
Click a star to rate this product

Reliance Electric Rockwell DC3 DC3N Motor Speed Controller Drive.

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a DC3N-12D-00-010-AN to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: DC3N-12D-00-010-AN
SKU: DC3N12D00010ANRE

Manufacturer: Reliance Electric
Series: DC3 Drives

Description
Repairs
Warranty
Manuals

DC3N-12D-00-010-AN Technical Specifications

Manufacturer	Reliance Electric
Series	DC3
Part Number	DC3N-12D-00-010-AN
Input Voltage	115/230 VAC
Phase	1 Phase
Hz	50/60Hz

About the DC3N-12D-00-010-AN

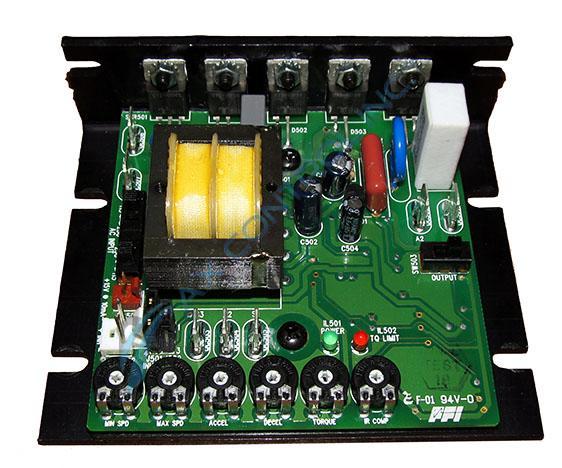

DC3N-12D-00-010-AN is a Reliance Electric DC3 simple non-regenerative drive. “00” means that the drive is contained in a chassis enclosure.

The Reliance Electric DC3 drives have a horsepower rating ranging from 0.25-2.0 HP. A motor HP of 0.25 has an AC input of 4.2 amps, a DC armature of 90/100 volts and 2.7 amps, and a motor field of 50/100 volts. A motor HP of 0.33 has an AC input of 5.5 amps, a DC armature of 90/100 volts and 3.5 amps, and a motor field of 50/100 volts. A motor HP of 0.50 (115 VAC) has an AC input of 7.5 amps, a DC armature of 90 volts and 5.0 amps, and a motor field of 50/100 volts. A motor HP of 0.50 (230 VAC) has an AC input of 3.8 amps, a DC armature of 180 volts and 2.5 amps, and a motor field of 100/200 volts. A motor HP of 0.75 (115 VAC) has an AC input of 10.9 amps, a DC armature of 90 volts and 7.6 amps, and a motor field of 50/100 volts. A motor HP of 0.75 (230 VAC) has an AC input of 5.9 amps, a DC armature of 180 volts and 3.8 amps, and a motor field of 100/200 volts. A motor HP of 1.0 (115 VAC) has an AC input of 12.1 amps, a DC armature of 90 volts and 10.0 amps, and a motor field of 50/100 volts. A motor HP of 1.0 (230 VAC) has an AC input of 6.7 amps, a DC armature of 180 volts and 5.0 amps, and a motor field of 100/200 volts. A motor HP of 1.5 has an AC input of 9.8 amps, a DC armature of 180 volts and 7.0 amps, and a motor field of 50/100 volts. A motor HP of 2.0 has an AC input of 11.7 amps, a DC armature of 180 volts and 9.2 amps, and a motor field of 100/200 volts.

Frequently Asked Questions about DC3N-12D-00-010-AN

Is a heatsink required on a DC3N-12D-00-010-AN?

A heatsink is only required on a Reliance DC3N-12D-00-010-AN for operation above 5 amps. It is best to use a heatsink on a DC3N-12D-00-010-AN because the maximum input on the DC3N-12D-00-010-AN is 7.5 amps without a heatsink. With a heatsink, the DC3N-12D-00-010-AN has max of 12 amps.

What is the output rating on DC3N-12D-00-010-AN?

DC3N-12D-00-010-AN has a 90/180 VDC output.

Where can I find a manual for a Reliance DC3N-12D-00-010-AN?

We're happy to send you a link to the DC3N DC Drive User Guide Manual - Instruction Manual D2-3451. The manual will help you with installation, operation, callibration, and troubleshooting of your DC3N-12D-00-010-AN

Repair Services For DC3N-12D-00-010-AN

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$446

Our highly skilled technicians can repair your DC3N-12D-00-010-AN. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
