This 0-48680-118 Regulator PC Board was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 0-48680-118 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-48680-118
  • SKU: 048680118RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

0-48680-118 Technical Specifications

Original Manufacturer Reliance Electric
Part Number 0-48680-118
Product Description Regulator Board
Part Status Now-Obsolete Legacy

About the 0-48680-118

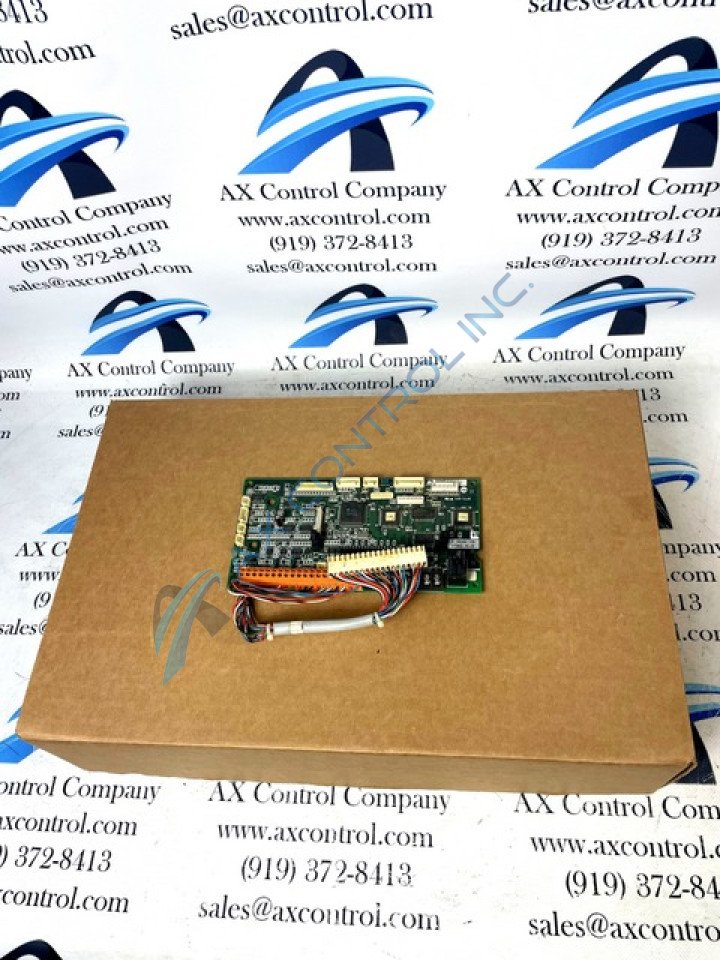

The 0-48680-118 is a regulator circuit board that used to be produced by Reliance Electric. The 0-48680-118 has twelve individual male connection terminals around the edges for the circuit board, along with two female connection terminals near the center of the board. The 0-48680-118 also has a large standard female terminal block that is bright orange, and a small black standard female terminal block. The 0-48680-118 regulator card uses fourteen integrated circuits and microcontrollers to regulate the performance of the card. These components contain all the data and information that makes the card function at ay given time. The 0-48680-118 features a series of jumper pins around the circuit board that has green caps. There is an encapsulated transformer in a corner of the circuit board covered with a DANGER sticker that pertains to the transformer and the black standard female terminal block. The 0-48680-118 regulator card is covered with hundreds of SDM (surface mounted resistors) and multilayer chip ceramic surface mounted capacitors. These pieces get rid of (resistors) or stores (capacitors) energy as directed by the fourteen integrated circuits. The 0-48680-118’s bright orange standard female terminal block also has wires placed in each port that connect with white connection harness. The 0-48680-118 is extensively labeled with what each part is and how many are on the card albeit in very tiny writing. The card also has the part number (0-48680-118), the maker (Reliance Electric) and where it was made (Japan) printed on it.

AX Control is here to help.

Reviews For 0-48680-118

Internal Review
(5.0)

This 0-48680-118 Regulator Power Connect Board was originally manufactured by Reliance Electric, for placement specifically in a now-obsolete legacy product series. This 0-48680-118 printed circuit board or PCB for shorts' assembly has several microcontrollers and over fourteen integrated circuits in what can only be described as a supreme level of voltage protection. - AX Control Lead Technician

Repair Services For 0-48680-118

Type Lead Time Price Action
Repair Service 1-2 weeks $387

Our highly skilled technicians can repair your 0-48680-118. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
