Product Description

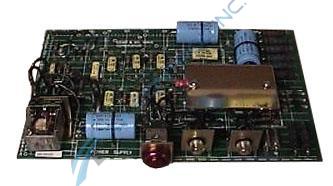

Reliance is the maker of the 0-51423 IET Power Supply Board. The circuit board has a large red button on a gold colored metal bracket, to the right of the red button are two clear LED lights also supported by gold metal brackets. The are three large blue polypropylene capacitors with information written on the outside. These blue polypropylene capacitors are so large they require additional support and are secured around their centers to the circuit board along with the electrical attachments on each end. There are nine yellow condensers with information scribed on the outside. There is one large transformer encased in clear plastic, with a mass of wires coming off the back of the cage. There are more wires in the middle of the circuit board that is connected to and tucked under an elevated metal plate that is right behind the red button and the LED lights. The surface of the circuit board is a grid pattern with each line labeled from the top by a series of numbers and from the side by a series of letters. The 0-51423 also uses other components to function such as diodes, resistors, other styles of condensers. The circuit board can be secured into the drive using the tab toward the top of the circuit board with the gold colored lines. The gold color lines allow for electrical communication between the circuit board and the drive it is in.
If you require additional information reach out to the staff at AX Control.
