About the 0-51865-15
0-51865-15 Current Loop Driver Card CLDS
The 0-51865-15 is a Reliance Electric component. This board component can be used in various Reliance Electric drives. It may be marked as manufactured by Asea Brown Boveri (ABB) or by Baldor-Reliance. The board number will essentially be the same regardless of manufacturer. The board has been discontinued by the manufacturer and is no longer being produced.

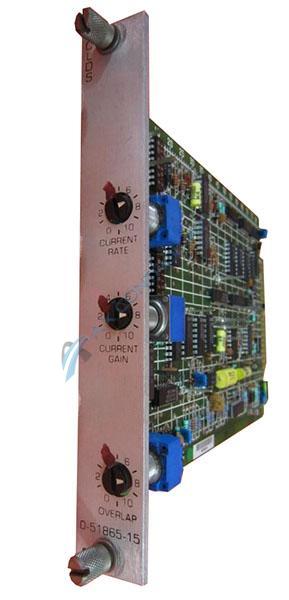

The 0-51865-15 is a Current Loop Driver Card. It is fronted by a silver-colored, narrow faceplate with three rotary dials. Each of these dials connects to a potentiometer that is located on the circuit board. The dials are labeled current rate, current gain, and overlap.
The circuit board component of the 0-51865-15 module is marked with a grid pattern. TP test points on the board are marked with reference designators, but no other components have designators. The board includes thirty integrated circuits, TP test points, transistors, potentiometers, resistors, and capacitors. The board uses ceramic disk capacitors and polyester vinyl axial capacitors. Some of the integrated circuits include Analog AND Gates, operational amplifiers, and analog comparators. The board also has a stub located off the back edge of the board that is covered by conductive tabs. This acts as a type of backplane connector.
More information regarding the board operation can be accessed through Reliance publications like user guides, data sheets, and manuals. These technical support publications will also provide information regarding installation and board operation.
