0-51865-18 CLDV  Current Loop Driver

The 0-51865-18 is a printed circuit board produced by the Reliance Electric Co. Circuit boards fabricated by this company may be marked with the Reliance logo, or they may carry marks from Baldor-Electric, or possibly ABB (Asea Brown Boveri) depending on the year of manufacture.  The same part number is used in all instances.

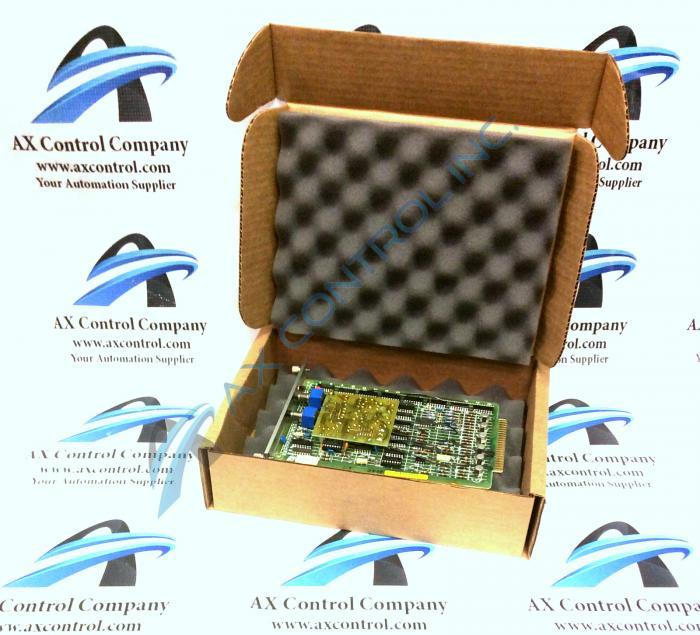

The 0-51865-18 functions as a Current Loop Driver Board.  A silver-colored faceplate with a set screw located at its top and its bottom edges fronts the board. The front panel has a single red LED indicator, marked ‘gain limit,’ and two rotary dials. One dial is labeled “rate” and the other “gain.” They can be set from zero to ten.   Both dials are backed by potentiometers placed on the rear of the faceplate. The faceplate and the PCB connect via three screws.

The 0-51865-18 is populated by over twenty-five integrated circuits.  The board has a line of transistors located along its rear edge. Other components include carbon composite and metal film resistors, polyester vinyl axial and ceramic disk capacitors, TP test points, and diodes.  The board uses surface wiring in several places. There is a small auxiliary board mounted to the front center of the board. This component is mounted using one screw connection.

The rear edge of the  0-51865-18 extends into a tail covered in a line of conductive tabs.  This tail acts as a sort of backplane. If more information is needed about this board, such as detailed information about installation, maintenance, or specific operation points, this information may be found through Reliance user guides, manuals, or data sheets.
