Base Driver Card

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 0-54394-4 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-54394-4
  • SKU: 0543944RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

Product Description

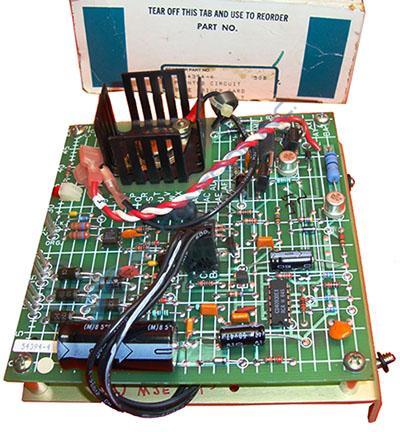

The 0-54394-4 is a base driver card made by Reliance Electric. The circuit board has six black diodes with silver marks on one end. The circuit board has five small orange square condensers, two small circle shaped condensers, to small PCB Mount Electrolytic capacitor and one large PCB Mount Electrolytic capacitor. The circuit board has four black transistors and two round silver transistors. The circuit board has several light pink base colored resistors with multiple bands, the circuit board also has multiple pale blue base colored resistors with multiple bands. The circuit board has four black angled brackets that form a box. Inside this box is a crystal oscillator. The 0-54220-2 is a circuit board that is lifted up on a large metal bracket that is the same size as the circuit board. The circuit board is attached to this metal bracket using four large screws and four metal pegs in each corner. The circuit board has a cluster of three to four wires that attach to the center of the circuit board and feed in between the circuit board and the metal plate. There is also a black wire that attaches to the cage surrounding the crystal oscillator with a wide light pink connector on the end. The circuit board also has a white and red set of wires that are twisted together with light pink wide connectors on the ends.

Allow AX Control to provide the greatest customer service and ship you what you need quickly at a great price.

  • O-54394-4

Repair Services For 0-54394-4

Type Lead Time Price Action
Repair Service 1-2 weeks $344

Our highly skilled technicians can repair your 0-54394-4. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
