This 0-55307 VVI Inverter PC Board was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 0-55307 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-55307
  • SKU: 055307RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 0-55307

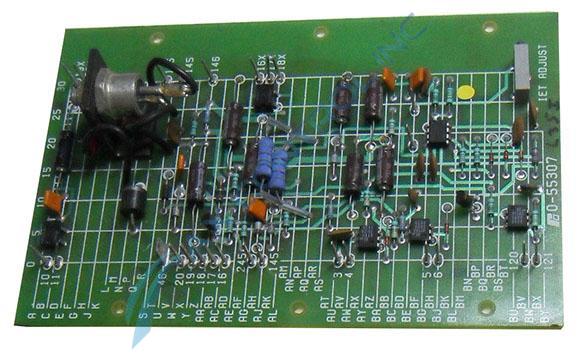

The 0-55307 is a power supply circuit board manufactured by Reliance Electric. The 0-55307 is narrow in width only measuring from zero to thirty on the grid markers. The 0-55307 is long, however, going from A to Z, AA to AZ, and BA to BY. The power supply card has eight large PCB Mount Electrolytic style condensers that range from large too small. The 0-55307 also has two orange balloon shaped ceramic condensers as well as six red polyester condensers, five orange square polyester condensers, and a suppressor condenser. The power supply card has five small integrated circuits.  The board has two black transistors (one towards the middle of the circuit board by the AB grid line and the other toward the bottom edge by the BP grid line). The supply board also has twenty-three resistors with banding.  At the BU / 25 grid mark is a potentiometer. There are twenty-three metal spikes around the perimeter of the 0-55307. Most of the metal spikes are labeled with just numbers, however, there are a few labeled with numbers and a letter, like these 19X, 20X, 16X, 17X, and 18X. At the top of the circuit board starting at the “D” line and extending to the “R” line for the length of the grid and extending the full width of the 0-55307 is a metal bracket with two large circular objects protruding out of the side that wires are connected to.

Call or email AX Control’s professional staff today to receive a hassle-free quote.

Reviews For 0-55307

Internal Review
(5.0)

This 0-55307 printed circuit board was originally developed by the Reliance Electric legacy series manufacturer to exist as a VVI Inverter PC Board. This 0-55307 printed circuit board or PCB for short is the original product of this functionality developed by Reliance, and offers the standardized Reliance measurement grid on this 0-55307 product offering's base circuit board. - AX Control Lead Technician

  • O-55307

Repair Services For 0-55307

Type Lead Time Price Action
Repair Service 1-2 weeks $278

Our highly skilled technicians can repair your 0-55307. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
