This 0-56301 Base Drive Board was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 0-56301 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-56301
  • SKU: 056301RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 0-56301

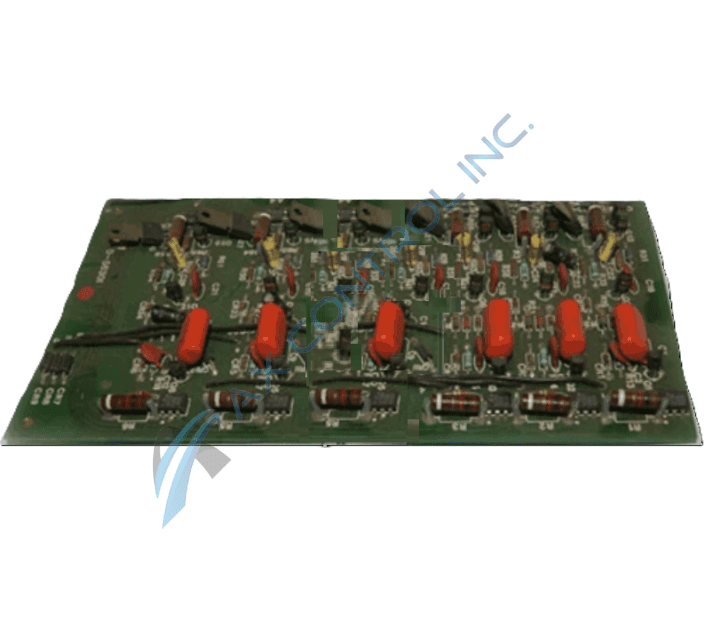

Reliance Electric is the creator of the 0-56301 base driver circuit board. This circuit board is neatly set up with six rows of components that match each other. The 0-56301 has a total of twenty-four small black transistors. The circuit board has six dark green shot key diodes. The 0-56301 has six large red polyester capacitors, four large orange ceramic capacitors, twelve dark red circle shaped polyester capacitors, and six dark green rectangular-shaped capacitors. The base driver card has fifteen black didoes with silver numbers and a silver line marked on the outside of each one and eighteen glass diodes that are a faded orange color with a black mark on one side. The 0-56301 has six large black base colored resistors with strips of white, gold and shades of red. The circuit board also has sixty other resistors with stripes. These resistors base colors range from olive green to beige, to light gray-blue and the stripes are every color. There are size small microchips near the upper edge of the circuit board. Each microchip is labeled U1, U2, U3, U4, U5, and U6. There are also about ten sections of wire all of different lengths and shades of white (with one pale green wire) attached to the circuit board at two points. Every component has a label with a series of letter(s) and number(s). On the left end of the circuit board is a tab with fourteen silver trace lines that allow communication between this circuit board and the drive it’s installed in.

Frequently Asked Questions about 0-56301

Can AX Control repair my 0-56301?

Yes. This 0-56301 product offering is available for both repair and replacement here at AX Control, with a standard one to two week lead repair time.

How is voltage protection handled in the assembly of this 0-56301 product offering?

This 0-56301 device's voltage limitation is produced through its internal assembly's inclusion of Reliance Electric-standardized hardware components such as capacitors, diodes, and resistors.
  • O-56301

Repair Services For 0-56301

Type Lead Time Price Action
Repair Service 1-2 weeks $411

Our highly skilled technicians can repair your 0-56301. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
