0-57004

About the 0-57004

0-57004 Tach Feedback Kit

The 0-57004 is a board component manufactured by Reliance Electric for use in the company’s drive system.  This board is often used in the MinPak Plus variable speed drives.

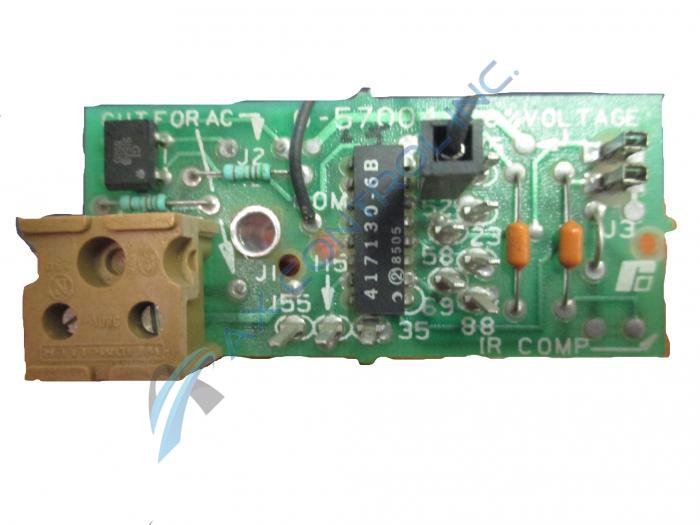

The 0-57004 functions as a Tachometer Feedback Kit.  It is used in applications where the accuracy of speed regulation (to 0.5% with 95% load change) is needed.   The board is a small rectangle, with a single standoff mounted near the center-left of the card.  The board is populated with a three-position terminal strip, labeled tach input, two integrated circuits, two terminal clips, a field of seven terminal pins and another line of three pins, ceramic capacitors, metal film resistors, and a single wired (female) pin connector.    The board is drilled in three locations.   It has very small tabs extending from the center of each side.  The board is imprinted with the manufacturer’s logo.

For more detailed information regarding installation, use, or troubleshooting of this board component, please consult publications from Reliance like user guides or manuals.
