About the 0-57006
0-57006 Test Meter Adapter Kit
The 0-57006 is a Test Meter Adapter Kit fabricated by Reliance Electric. This is often used within the MinPak Plus three-phase variable speed drive.

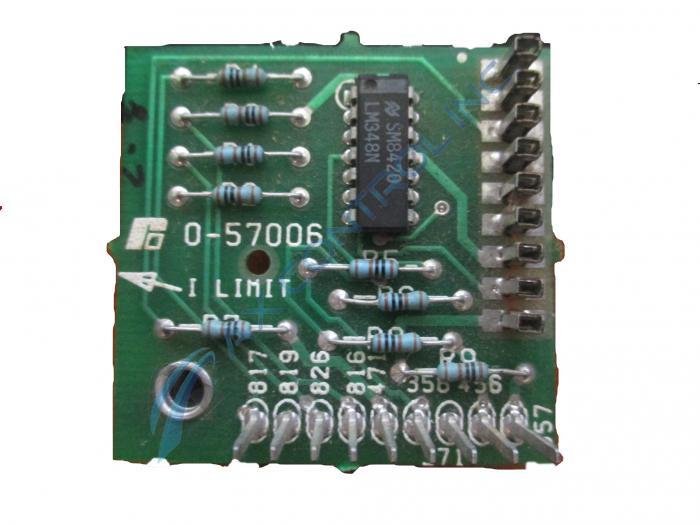

The 0-57006 is a plug-in kit used to measure the controller and regulator signal voltages with a voltmeter. The circuit board is a small square with a single integrated circuit that operates as a high-performance analog operational amplifier (LM348J,) nine resistors, nine terminal pins, and nine terminal clips. The board is labeled 705354-75A on its rear surface. Two of its four sides have very small tabs extending from their center points. A standoff is mounted to the rear surface of the board at one corner. The board is marked with the manufacturer logo, with the board id, and with the label “1 limit.”
For more detailed information regarding the use and operation of the 0-57006 Test Meter Adapter Kit, please refer to publications from Reliance like data sheets and manuals.
