0-60029-1 Reliance Interface Card / DPS PMI AC Parallel SA 3000: The 0-60029-1, from Reliance, is a circuit board and faceplate module manufactured for use within the company’s drives, most often the SA 3000. This 0-60029-1 Reliance Interface Card / DPS PMI AC Parallel SA 3000 device belongs to the Drive Boards Series of Reliance Electric products available here through our AX website. This 0-60029-1 DPS PMI AC Parallel SA 3000 Card's Drive Boards series must by and large be treated as a legacy GE product series, as its original manufacture was curtailed due to a manufacturer-enforced full-series functional obsolescence.
Hardware Tips and Specifications
The 0-60029-1 functions as an Interface Card. The front faceplate is bare except for the two screws used to lock the module in place after installation and a single female connector that is labeled P1/Parallel Power Module Interface. The faceplate is:
- approximately eight inches high
- marked with the company logo
- marked with the board’s ID number
- attachable to the circuit board via two screws.
0-60029-1 DPS PMI AC Parallel SA 3000 Visual Inspection

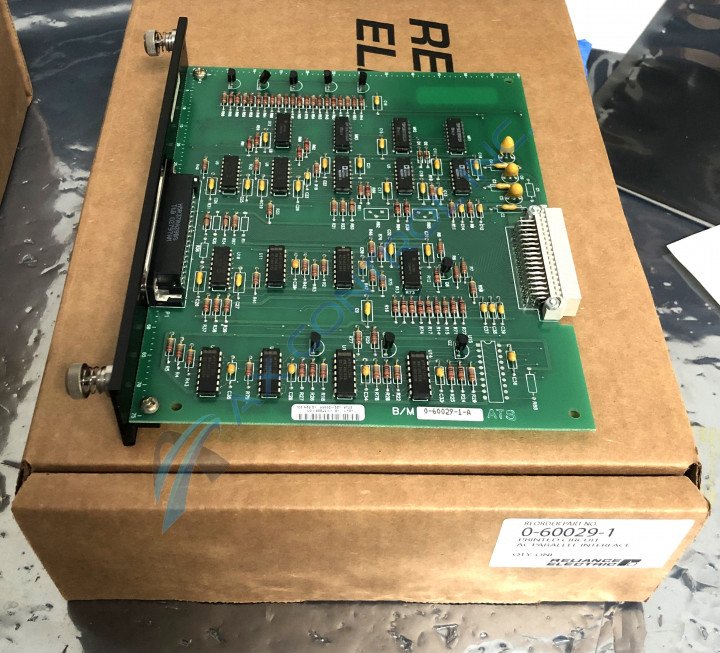

The board is marked with hash marks along two edges and is factory-drilled in all corners. The circuit board portion of the 0-60029-1 is populated by:
- nine transistors
- fourteen integrated circuits
- metal film resistors, diodes, and ceramic capacitors
- three thin-film resistors (TDP16032002.)
- these have two standard circuits in a molded case construction made from highly-stable thin-film material.
- a single right-angled interface connector located in its center.
General 0-60029-1 DPS PMI AC Parallel SA 3000 Installation/Revision Information
Most components are marked with reference designators. For more information regarding board components, or for detailed information about how to install this board in its proper location, please refer to technical support products like user guides or data sheets. These products were originally provided by Reliance. They may be available now through other manufacturers such as Baldor-Reliance or possibly Asea Brown Boveri. The 0-60029-1 board component is a static-sensitive product. Please read and follow all safety and handling procedures before unboxing.
