0-60063-1-A

About the 0-60063-1-A

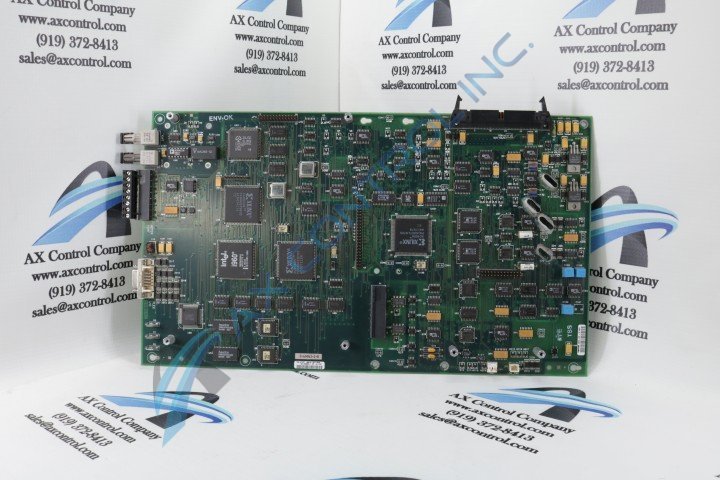

The 0-60063-1-A is designed to function as a PMI Regulator Motherboard for the Asea Brown Boveri/Reliance Electric SA3100 series.  The SA3100 AC Power inverters are used within the Automax distributed power system and offer variable frequency and variable voltage.

Before the addition of any sort of boxing or external shipping materials, the 0-60063-1-A weighs approximately 1.69 pounds.   The board is no longer available from the OEM but is typically in stock here at AX  Control.

The 0-60063-1-A can communicate with the AutoMax UDC module through two fiber optic connectors located along one board edge.  The board is also used to monitor drive operations and to run motor control algorithms.  Other interfaces include a PMI interface connector, AC power technology circuitry, meter ports, Flex I/O, a synchronous transfer port connector, and PMI processor circuitry.   The meter ports are located within a terminal strip along one board edge.  These can be connected to an external analog device using 14-22 AWG twisted wire (max length 13 feet.)

The 0-60063-1-A is designed to mount using four factory-drill holes (located in the board corners) slipped over key pins.  These should be carefully aligned during installation to ensure no damage occurs.

Data sheets, user guides, and product manuals originally published and provided by Reliance Electric will help to guide you through a successful and safe installation.  Please review all pertinent information before unboxing your new replacement part from AX Control.  If you no longer have these publications, let us know.  We may be able to help.
