Controller Inverter

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 56313-1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 56313-1
  • SKU: 563131RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

Product Description

56313-1 Controller Inverter

The 56313-1 is a Controller Inverter board manufactured by Reliance Electric.  In some cases, your component may have originally shipped under the name of ABB or Baldor-Reliance.  If you have concerns regarding compatibility between your current component and the listing for this replacement board, please reach out to our team for more information.

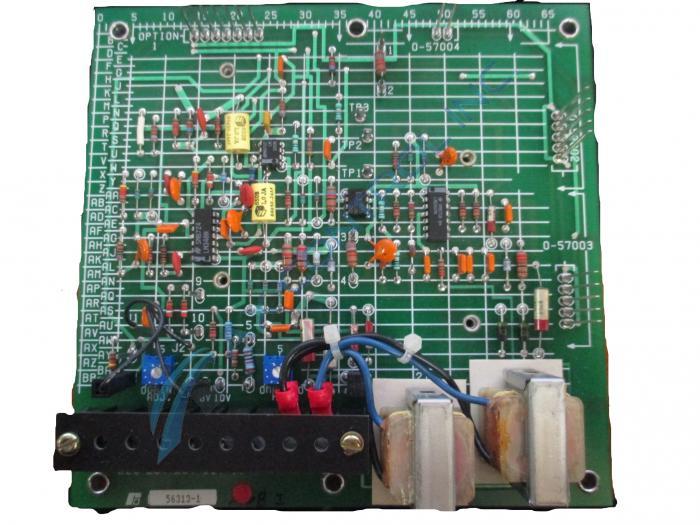

The 56313-1 is a nearly rectangular board with a grid pattern printed across the majority of its surface.  Standoffs are mounted into drill holes located along the board edges and within the body of the board.  Terminal pins are mounted in lines, primarily along the board edges; these allow for the mounting of certain auxiliary cards, such as the 0-57002 and the 0-57003 boards.

The 56313-1 is populated by two transformers in frames, located in the bottom right board corner.  Next to these, there is an eight-position terminal strip. This screw-mounts to the board’s surface.  Seven of the terminals are numbered.  Surface wires from the transformers (blue and black with red clamped ends) connect to some of these terminal screws.

Other board components include potentiometers, integrated circuits, surface wires with terminal pin (female) covers, terminal pins, disk capacitors, carbon composite resistors, TP test points, diodes,  and capacitors made from other mediums like polyester vinyl, ceramic, and electrolytic material.  The board is marked on its rear surface with several additional codes.

Reliance data sheets or manuals will provide additional information about the 56313-1, including detailed installation and handling procedures.  These publications will also have troubleshooting suggestions.
