1AC4005U

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.56 (9)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.56 (9)
  • Click a star to rate this product
8.2 Amp Max Out 5HP AC Drive

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 1AC4005U to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 1AC4005U
  • SKU: 1AC4005URE
  • Manufacturer: Reliance Electric
  • Series: GP-1200 Drives

1AC4005U Technical Specifications

Manufacturer Reliance Electric
Series GP-1200
Part Number 1AC4005U
HP 5 HP
Input Voltage 460 VAC
Hz 50/60Hz

About the 1AC4005U

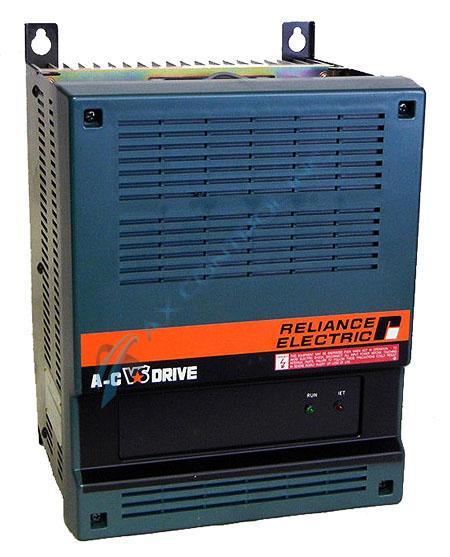

The 1AC4005-U First Generation Three Phase AC VS Drive Controller uses a blank chassis, 5HP, 460 VAC, and is UL Listed/CSA approved. There is a Local Operator’s Control Station on the front of the cabinet on the controller. There are two visible LEDs on the front cabinet of the Local Operator’s Control Station. These LEDs have a specific function. The status of the drive (RUN) and fault condition (IET) can be identified by using these LEDs.

The 1AC4005-U controller has a separated start/stop and function loss circuitry. The controller also has a standard fuse for easy replacement. Besides that, other features include line-to-line and line-to-ground output short circuit protection, a coast-to-rest on stop as standard or ramp-to-rest with a switch change, a torque boost for added starting torque, an automatic correction of output voltage for input voltage fluctuation, and a regenerative voltage limit and motoring current limit. The 1AC4005-U controller operates with standard off-the-shelf NEMA B and synchronous motors.

Three Phase AC VS Drive 1AC4003-U controller also can be purchased alongside a cabinet conversion kit. This kit will allow for the hardware to change from NEMA 1 enclosure to chassis type setting. The kit has a blank local operator’s control station, the chassis enclosure’s top and bottom plates, and a customer interface module. Voltmeters and ammeters also can be purchased separately as an extension to the controller which allows for VAC and current measurement.

Repair Services For 1AC4005U

Type Lead Time Price Action
Repair Service 1-2 weeks $689

Our highly skilled technicians can repair your 1AC4005U. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

1AC4005U Manuals, White Papers, Data Sheets, and Troubleshooting
