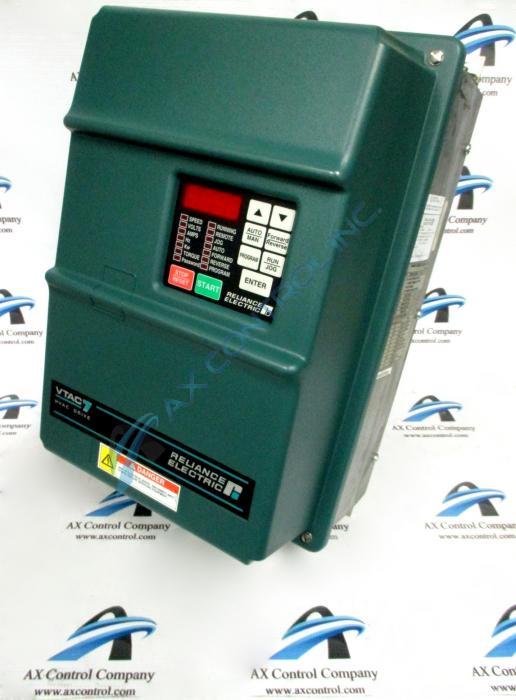

Reliance Electric GV-3000 GV3000/SE 15HP 230VAC Drive.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 15V2260 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 15V2260
  • SKU: 15V2260RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

15V2260 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 15V2260
HP 15 HP
Input Voltage 200-230 VAC
Enclosure NEMA 4X/12
Keypad/Display Built-In Keypad
Phase 3 Phase
kW 19.28kW
Hz 60Hz
Instruction Manual D2-3388

Product Description

The 15V2260 is a GV3000/SE AC 15HP 200-230 VAC Drive originally produced by Reliance Electric. It possibly was also put into production by ABB or Reliance Electric depending on when its production dates were.

The 15V2260 is the 6.04 version of this particular drive. It is classified as a pulse-width-modulation drive that has the power to swap between using general-purpose (V/Hz) regulation or vector regulation. This drive has the capacity to have a 150% output current for 1 minute when it is selected for vector regulation. It is rated 24.1 KVA and has a 375W power loss. It has a max input amperage of 60.5 and max output amps of 53.3.

The 15V2260 is in a NEMA 12 rated chassis that is dust/drip-tight. It is not vented and only should be used in indoor environments.  Beneath the chassis, are several important drive components including but not limited to two fan assemblies (one is internal), a keypad with an attached mounting bracket, a regulator board, a PISC PCB, and a GVPB PCB. The regulator board actually slides into the mounting bracket that is connected to the keypad and provides the 7-segment 4-digit LED display that can be seen on the keypad.  This LED has the ability to display drive parameter information and various drive error codes. The keypad plugs into the J9 connector on the regulator board. There is a user I/O terminal strip and an RS-232 communications port also located on the regulator board. The user has the ability to plug in a PC into the 9-Pin D-shell RS-232 port.

Frequently Asked Questions about 15V2260

What is the input KVA on 15V2260?
15V2260 has 24.1 KVA input.
What are the power loss watts on 15V2260?
15V2260 has 375 power loss watts when 15V2260 is at full load.
What are the two base boards on 15V2260?
15V2260 has a PISC board and a GVPB board, both of which are base boards on 15V2260.
What is the torque control response on 15V2260?
The torque control response is 180 to 220Hz on a Reliance GV3000 15V2260.

Repair Services For 15V2260

Type Lead Time Price Action
Repair Service 1-2 weeks $1748

Our highly skilled technicians can repair your 15V2260. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

15V2260 Manuals, White Papers, Data Sheets, and Troubleshooting
