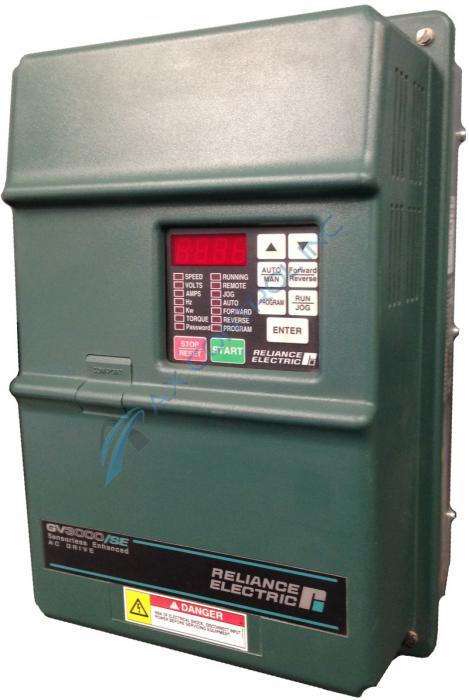

Reliance Electric GV-3000 GV3000/SE 25 HP 30.4 AMP VFD Drive.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 25G4150 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 25G4150
  • SKU: 25G4150RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

25G4150 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 25G4150
HP 25 HP
Input Voltage 380-460 VAC
Enclosure Type 1/IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Instruction Manual D2-3339 & D2-3340

Product Description

The 25G4150 is an AC PWM (pulse-width-modulation) drive that was initially created by Reliance Electric. It is a 25HP 380-460 VAC GV3000 power module. It could have been also marketed and sold as a part of the Baldor Reliance and/or ABB product lines. It is version 5.0 of this drive which is now largely unsupported by the original manufacturers. Please check AX Control’s website to find out about the availability of a refurbished or new surplus 25G4150.

The 25G4150 was built primarily to control different aspects of a motor. It has a NEMA 1 style enclosure rating which means that it is supposed to be used in an indoor setting. It comes with air vents in its sides to help promote airflow to the internal drive components. It also has a small hatch that allows the user access to an RS-232 port. It is advisable to keep this drive away from various liquids and corrosive materials.

The 25G4150 has several physical components that include a fan and a fan assembly, keypad, regulator board, a current feedback card, diode bridge, gate driver card, capacitors, and a capacitor card. The keypad and regulator are connected together. There is a bracket attached to the keypad that the regulator can slide into. The regulator is behind the keypad so that the display board on the regulator can be seen on the keypad. The keypad runs a cable to the regulator and connects via the J9 port. The regulator also features a terminal strip that a user can connect I/O to.

Frequently Asked Questions about 25G4150

What are components of 25G4150 that other GV3000 power module drives with a 1-25 HP don't have?
There are 3 main components that 25G4150 has that not all GV3000 1-25 HP power modules don't have. 25G4150 along with power modules with a 15-25 HP have a power PCB, power supply PCB, and gate driver PCB. The main components that all 1-25 HP GV3000 power modules have, including 25G4150, are: fan, membrane switch, regulator PCB, capacitor PCB, current feedback PCB, internal fan assembly, IGBT module, diode bridge, and a fan wire harness. 25G4150 is one of few GV3000 power modules with the extra three PCB components.
Where are the pulse tachometer connections on 25G4150?
The pulse tachometer connections for 25G4150 are terminals 4-9 on 25G4150. To view all terminal strip connections on 25G4150, view figure 2.12 in the hardware manual for 25G4150 - Manual D2-3340.
How much does 25G4150 weigh?
25G4150 has a weight of 35lbs. The dimensions of 25G4150 can be found in table 3.2 in the hardware manual for 25G4150, Manual D2-3340. Followed by a table listing 25G4150's dimensions in the manual, is a diagram of 25G4150's drive dimensions, which is figure 3.1 in the manual. For a copy of the manual, send us a request for Manual D2-3340.
What is 25G4150's input KVA?
25G4150 has a 29.5 input KVA.

Repair Services For 25G4150

Type Lead Time Price Action
Repair Service 1-2 weeks $1453

Our highly skilled technicians can repair your 25G4150. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
