60V4060

About the 60V4060

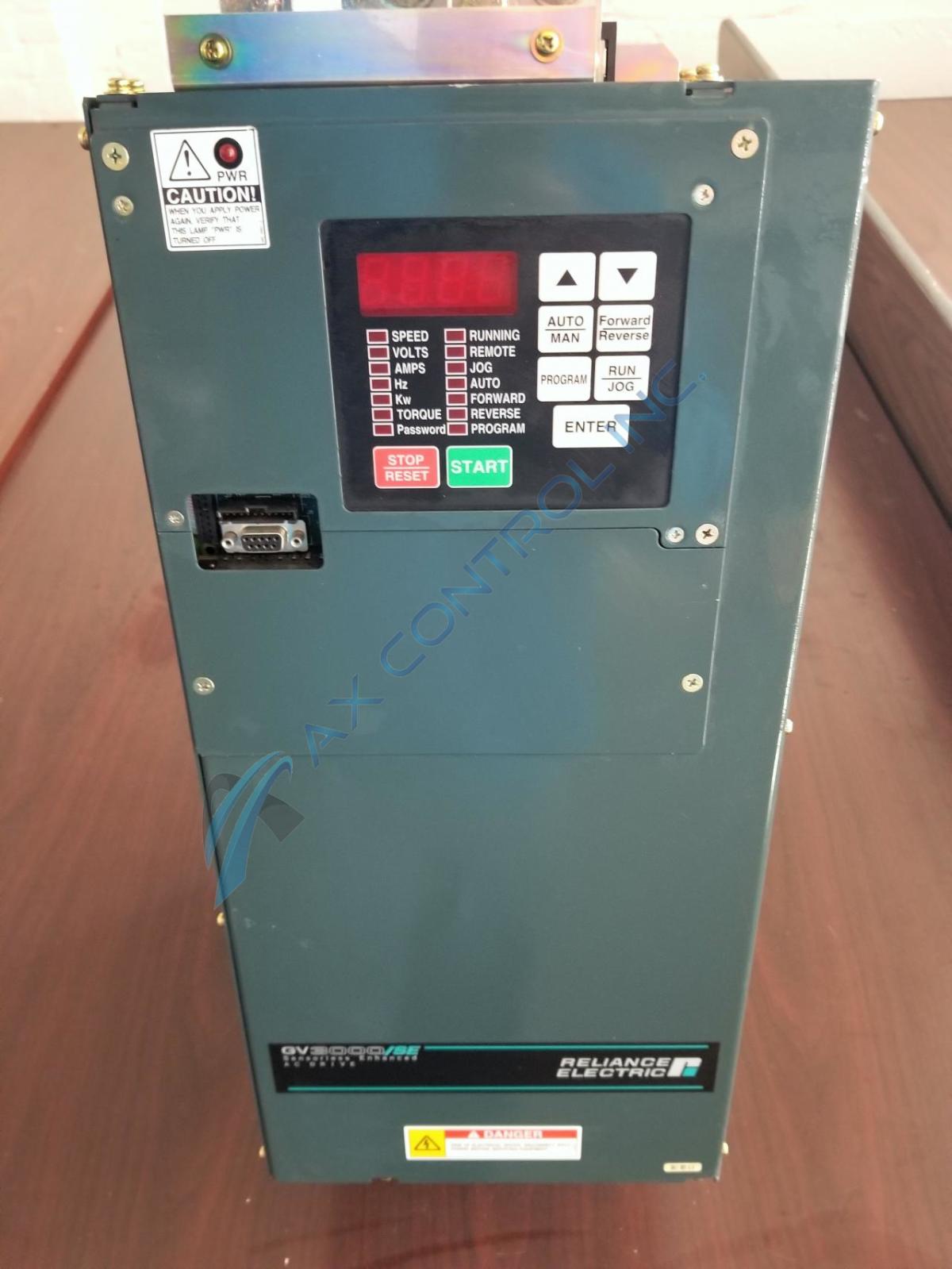

Produced by Reliance Electric as part of their GV3000 Series, the 60V4060 is one of the bookshelf drives available at 60 HP. This model has a voltage range of 380-460 VAC. There are two regulator versions available with the GV3000 drives, Vector or Volts/Hertz (V/Hz)  the 60V4060 drive has the capability to operate on both. The 60 at the end of the model number indicates the regulator version this drive will operate on which is a 6.0 firmware regulator version.

Each of the GV3000 drives has two parameter menus. The first available menu covers all of the general parameters, which are used for basic applications whereas the second menu is used for safety regulation and potential adjustments of the drive. The second menu is also used for the V/Hz and Vector parameters. There are unique parameter values for the 60V4060 model. Some examples of parameters and their values specifically for vector regulation are, motor nameplate HP (U.022) with a value of 60.0, flux current reg. int. gain (U.020) with a value of 50.0, magnetizing current (U.006) with a value of 49.0, and field weakening start RPM (U.016) with a value of 1780. For the remaining parameters for V/Hz regulation parameters and the general parameters refer to Appendix C in the GV3000/SE 460 VAC Drive, Software Reference Version 6.07 D2-3391-6.

The main components of the 60V4060 drive are a fan, wire harness, internal fan assembly, IGBT module, diode bridge, membrane switch/top bracket, gate drive board, power supply board, and power and regulator board.
