75R4160

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The 75R4160 is a 75 HP, 50/60 Hz, 3-phase GV3000 series drive with a 380-460 VAC input voltage rating, a type 1/IP20 enclosure, and a built-in keypad display.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 5-7 DAYS

Sell Surplus: Have a 75R4160 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 75R4160
  • SKU: 75R4160RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

75R4160 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 75R4160
HP 60-75 HP
Input Voltage 380-460 VAC
Enclosure Type 1/IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

About the 75R4160

The 75R4160 module was produced by Reliance Electric to be a part of the GV3000 series as an AC drive. The GV3000 product line is now a legacy series, meaning that it is not being made at this time, which includes the 75R4160 AC drive. Despite the abandonment of the 75R4160 AC drive by Reliance Electric, it may still be available via AX Control. You can check on this device’s current status in our inventory on our website.

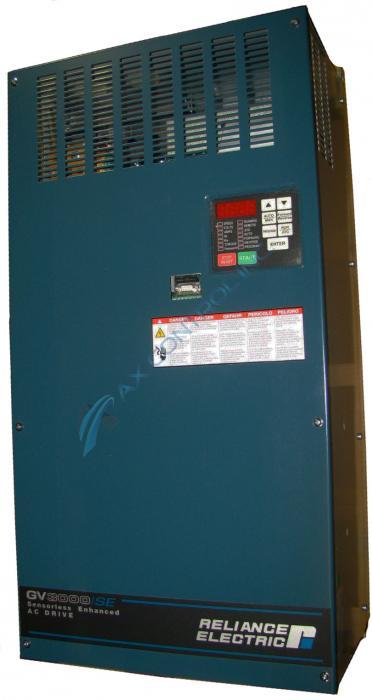

The 75R4160 AC drive has its own display with a keypad and several LEDs for indicating the status of the drive. The 75R4160 AC drive also has a small port on the front and ventilation at the top part of the faceplate.

The 75R4160 AC drive has a horsepower range that starts at a minimum of 60 HP to a maximum of 75 HP. In addition, the 75R4160 AC drive uses the Vector type selected regulation, which is rated at 150% output current capability for a single minute. The input for this particular drive is rated at 80.0 kVA and 101 A. The input voltage is rated at 380 VAC through 460 VAC and the full load power loss Wattage for this device is 1400 W.

The 75R4160 AC drive has the NEMA 1 enclosure, which is a vented enclosure that has its own door for accessing the communication port. This door is included so that the operator of the 75R4160 AC drive does not need to remove the entire cover. The NEMA 1 enclosure is meant to be used for general-purpose use indoors.

Frequently Asked Questions about 75R4160

How do I identify 75R4160's fault codes?
To identify fault codes on 75R4160, you need to match the fault code with the fault description, which you can find in Section 5.2 of the GV3000 software manual for 75R4160, Manual D2-3359. Table 5.2 in the manual lists all fault codes on 75R4160. The manual provides a list of fault codes for 75R4160 by fault code error, fault description, fault cause, and corrective action for the fault. To view the list of fault codes for 75R4160, request Manual D2-3359 or search for the software manual for 75R4160.
How do I find out more about parameters on 75R4160?
To find out more about parameters on 75R4160, look at the programming reference section of the software manual for 75R4160, Manual D2-3359. Within the manual, you will find parameters broken up into groups of parameters, types of parameters, etc. The manual will also list each of the parameters with their name, description for parameters, parameters range, default setting of the parameters, and other parameters to refer to when adjusting each parameter on 75R4160. For a copy of the manual, ask for a link to Manual D2-3359 for 75R4160.
How many power loss watts does 75R4160 have?
75R4160 has 1400 power loss watts when 75R4160 is at full load.
Which terminals are RS-232 connections for 75R4160?
The RS-232 connection terminals on 75R4160 are terminals 1-3. These terminals should only be used on 75R4160 when the RS-232 communication port (J8) or an OIM is not being used with 75R4160. Terminal 1 is the transmit RS-232 communication connector to 75R4160. Terminal 2 id the receive RS-232 communication on 75R4160 and terminal 3 on 75R4160 is the RS-232 regulator common for 75R4160.

Repair Services For 75R4160

Type Lead Time Price Action
Repair Service 1-2 weeks $1729

Our highly skilled technicians can repair your 75R4160. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
