Product Description

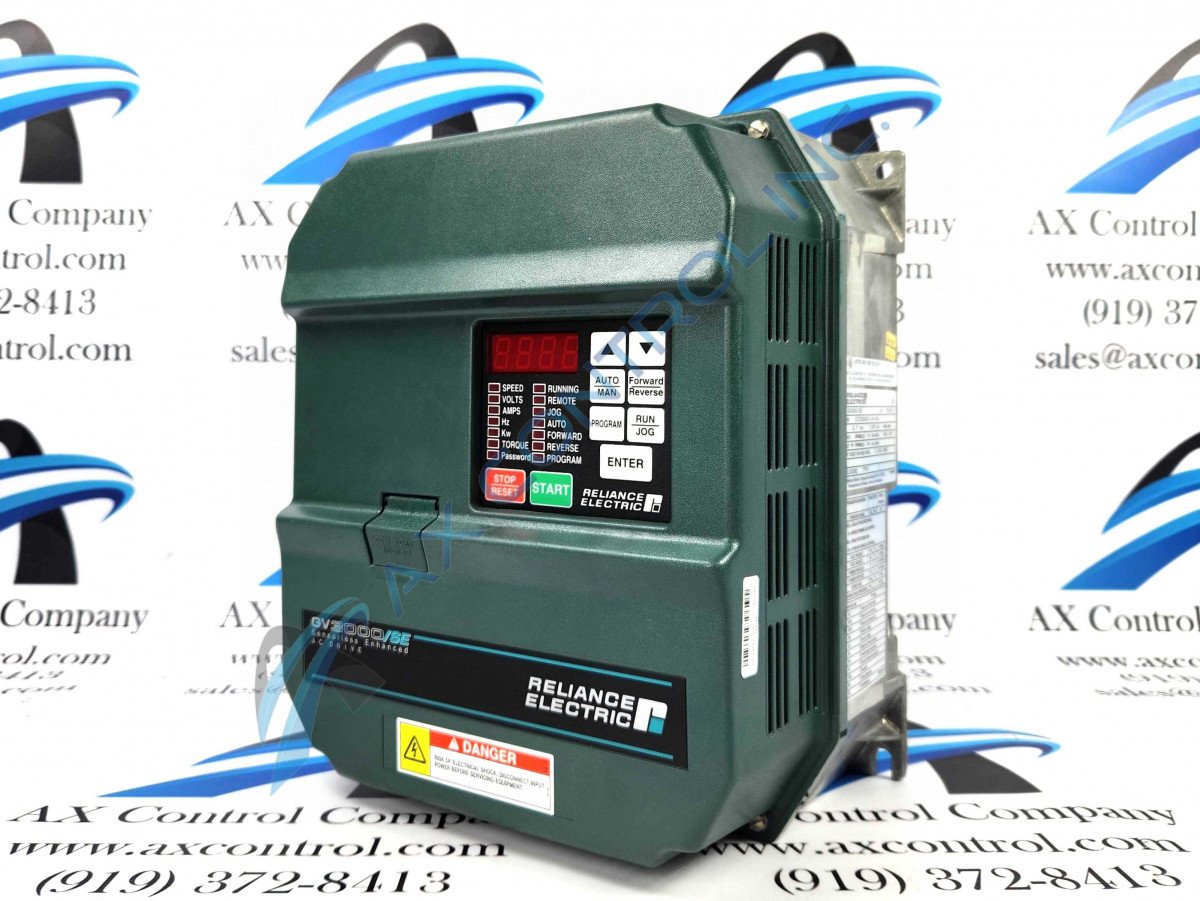

The 896.02.70 drive is one of the GV3000 AC power module drives produced by Reliance Electric. This model operates on 2 HP at a voltage range of 380 to 460 VAC. There are two alternate part numbers concerning the 896.02.70 drive, one is the catalog number which is GV3000U-AC004-AF-DBT and the other is the official US part number 2V4460. Either module number helps indicate what the model does, how it operates, what the input and output amps are, etc.
When the 896.02.70 drive is referred to as the catalog number it helps determine the types of approvals, enclosure types, DC-bus terminals, AC inputs, and the NEMA design. The AF-DBT shows that the model is an inverter version with DC-bus terminals and IP54/IP52 enclosures. The motor power associated with this drive is 1.5 when operating in both vector and volts/hertz regulator modes. The nominal inverter current of the 896.02.70 drive a 2 kHz is 3.5 when used in Volts/Hertz regulation and 3.4 when used in Vector regulation.
There are several components associated with the 896.02.70 drive, there are sixteen components overall associated with models that are in the range of 1-25 HP. This drive has a fan assembly, regulator board, current feedback board, capacitor board, membrane switch (keypad) bracket, and an internal fan assembly. The locations of the components can be found in Figure 2.2 in the GV3000/SE AC Drive Hardware Reference, Installation, and Troubleshooting Manual D2-3360-5.
