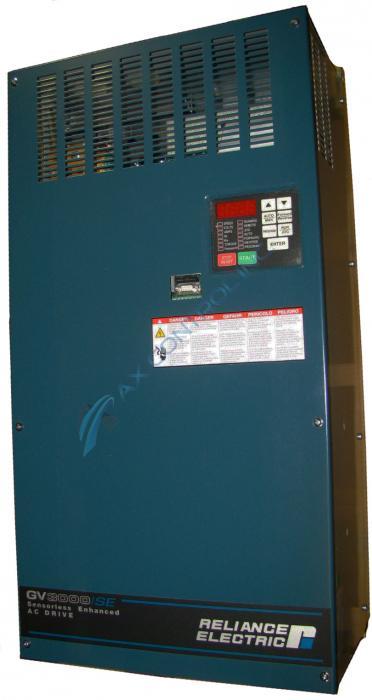

This 100-120 HP Reliance Electric GV3000 series drive, commonly known as 125R4160, is a 50/60Hz 3-phase drive with an input voltage of 380-460 VAC and a type 1/IP20 enclosure.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 896.18.80 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 896.18.80
  • SKU: 896.18.80RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

896.18.80 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 896.18.80
HP 100-125 HP
Input Voltage 380-460 VAC
Enclosure Type 1/IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

Product Description

The 896.18.80, which is also known as 125R4160, is a 380-460 VAC 100-150HP AC Drive by Reliance Electric. It was possibly also mass-produced by ABB or Baldor Reliance at one point during its production years.

The 896.18.80 was produced under the GV3000/SE series as version 6.06 of this drive. It is a PWM that has the ability to control the vector or volts/hertz regulation. It can provide power and control to the motor it is assigned to. It has an input of 210A 50/60HZ. It has an output of 0-200 Hz 210A @ 2kHz V/Hz and 152A @ 2kHz vector. It has a system rating of 10kA for short circuits.

The 896.18.80 is protected by a very large type 1/IP20 NEMA enclosure. There are air circulation vents on the sides and front of the enclosure. It has 6 spots on the bottom where cables can be attached to the drive. Behind those connections are two very large external fan assemblies. These fans are in charge of making sure the internal components don’t overheat. There are internal fans that also help prevent overheating. There are brackets on the sides and bottom of the chassis that are there for mounting purposes. It is advised to install this drive vertically onto a metallic surface. It is not advisable to operate this drive horizontally on the floor. This drive is only meant for indoor applications. On the front panel of the drive is a small door where the user can access an RS-232 port. Just above that port is a built-in keypad.

Frequently Asked Questions about 896.18.80

How many input amps does 896.18.80 have?
896.18.80 has 159 input amps when 896.18.80 is at vector regulation. 896.18.80 has 213 input amps when 896.18.80 is at V/Hz regulation.
How do I select the source of the analog output signal on a reliance 896.18.80?
Parameter P.012 on 896.18.80 is the parameter for 896.18.80 that selects the source of the analog output signal on 896.18.80. Parameter P.012 is identified as the Terminal Strip Analog Output Source Parameter. This parameter has a parameter range of: 0= speed (bipolar), 1 = torque (bipolar), 2= speed (unipolar), and 3= speed (unipolar at V/Hz) or torque (unipolar at vector) on a reliance 896.18.80. The default parameter setting is 0 for 896.18.80.
What is the cause of an HU fault code on 896.18.80?
Fault code error "HU," or a high DC bus voltage fault, is caused by DC bus voltage too high on 896.18.80 (capacitor protection) or 896.18.80's deceleration time being too short. If DC bus voltage being too high on 896.18.80 is creating the fault, check input line voltage to correct the fault on 896.18.80 and you may need to add a transformer to 896.18.80. If the fault is caused by short deceleration time on 896.18.80, increase deceleration time with parameter P.002, parameter P.018, or parameter P.023 versus Maximum Speed/Hz (parameter P.004). To correct this fault, you may also need to install DB option with resistors on 896.18.80.
What is covered in Manual D2-3360 for 896.18.80?
Manual D2-3360 is the GV3000/SE AC Drive Hardware Reference, Installation, and Troubleshooting Manual for 896.18.80. Covered in the manual is: an introduction, about the drive (which specifically addresses 896.18.80), planning before installation of 896.18.80, mounting, grounding, and finding wire routing locations for 896.18.80, installing input power wiring to 896.18.80, installing output power wiring to 896.18.80, wiring 896.18.80's regulator board terminal strip, completing the installation, and troubleshooting 896.18.80. The manual also has appendices, which include additional technical specifications for 896.18.80, compliance with machinery safety standard when using 896.18.80, etc. For a copy of the manual, send us a request for Manual D2-3360.

Reviews For 896.18.80

Internal Review
(5.0)

The 896.18.80 Reliance Electric GV3000 series drive is a fantastic 3-phase drive, rated at a powerful 100-125 horsepower. Oftentimes known by its Americanized part number 125R4160, this drive comes standard with an updated 6.0 regulator version, and is repairable here at AXcontrol with a lead time of one to two weeks. - AX Control Lead Technician

Repair Services For 896.18.80

Type Lead Time Price Action
Repair Service 1-2 weeks $1571

Our highly skilled technicians can repair your 896.18.80. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
