About the GV3000E-AC015-AA-DBU-RFI

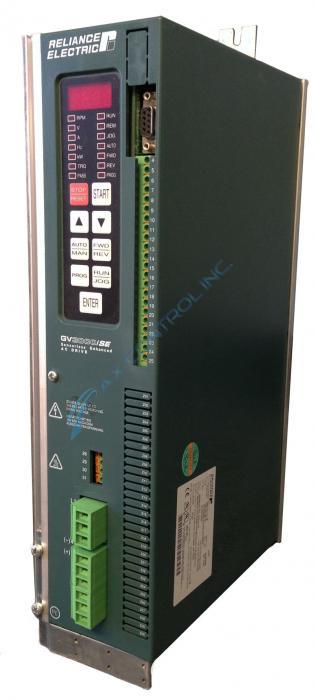

Produced by Reliance Electric, the GV3000E-AC015-AA-DBU-RFI drive is one of the many bookshelf drives. This drive has a CE/RFI filter noted by the RFI at the end of the catalog number. The CE filter will be denoted by the US model number 150ET4060; the ET in the model number denotes the filter. The 150ET4060 in the US model number, and the AC015 in the catalog number, are used for identifying the V/Hz current rating, which for this model is 15.0 A. There is another part number associated with this drive, which is 896.07.31; this part number is known as the European stock number and can identify the inverter version. In this case, the inverter version is enhanced with the RFI filter, DC-bus terminals, and a braking unit.
One of the upsides of the GV3000E-AC015-AA-DBU-RFI drive is that it comes with a choke in reference to the AC input fuse. The AC input current on this unit corresponds to the input amperage, which is 16 A. There is an external fuse for this drive, a nominal and maximum fuse which are 25 A.
The components of the GV3000 drives depend on the amperage. The elements of this drive are a fan located on the bottom, power and regulator-printed circuit boards within the drive, an output relay terminal board located outside and within the drive, and a keypad/display on the front panel. For details on how all of the components on the drive function, refer to the D2-3427 GV3000/SE AC Bookshelf Drive Hardware Reference, Installation, and Troubleshooting Manual.
