Product Description

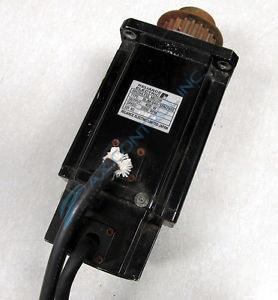

The BLJM-040 motor was created and manufactured by the company Reliance Electric under the umbrella of the HR500 series of motors and servos. The BLJM-040 is also known as the 5RM2400, which can be found by following the link. Call or email AX Control today to check on this product’s availability.
The BLJM-040 motor is associated with the 5RA0400 model Chassis Amplifier and the motor’s enclosure type is the TENV model. The BLJM-040 motor is outfitted with an FF115 model IEC Flange Mounting. This motor possesses an inertia rating of 20.4 lb. in s^2 x 10^-4, a base speed rating of 2000 RPM, and a constant torque rating of 16.9 lbs. The power rating of the BLJM-040 motor is 400 Watts and the nominal horsepower is ½.
Reliance Electric’s HR500 series of motors was created to included in industrial settings. To accomplish this, there are many much-needed features included in this series’ motors. This includes this series’ use of rare earth magnets, which are used to help maintain an appropriately high inertia to torque ratio, and the use of an optical encoder inside the motors, which is used to accurately regulate position and speed over the whole range of operation.
The BLJM-040 motor weighs approximately 11.15 lbs. or 5.06 kg. This is, of course, without taking any of AX Control’s reliable and safe packaging materials into consideration, which are capable of withstanding many of the bumps and falls that can occur during the laborious shipping process.
