About the 85014-12Y
85014-12Y Rectifier Stack Card Assembly
The 85014-12Y is a Reliance Electric and Engineering Co. component. This part was used within Reliance drives and their auxiliary systems. While it is no longer produced actively by the OEM, when it was in active distribution it was sold under the Reliance Electric name as well as under the manufacturing names of Baldor-Reliance and ABB/Asea Brown Boveri. These company names do not typically affect compatibility, but please refer to your user guides for more information.

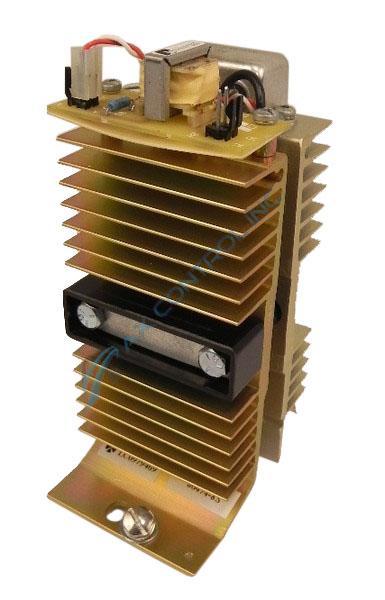

The 85014-12Y is a rectifier stack card assembly. This component is built with two horizontal heat sink components bolted together across a large air gap. Fins on these heat sinks extend both inward and outward, creating a large interior gap. A circuit board is mounted to the left and the right side of these assemblies. The circuit boards are screw mounted to the central tower. They are populated by wire-wound and carbon composite resistors and several capacitors. Surface wires connect these circuit boards to screws mounted on the heat sinks. The lower heat sink component has two right-angled tabs mounted to its outer left and right bottom edge in order to create a stable base for the unit.
For a more detailed description of the use, maintenance, installation, or proper installation of 85014-12Y, please refer to data sheets or user guides originally provided by Reliance Electric.
