This 85014-RR Rectifier Stack was manufactured for Reliance Electric's Rectifiers & Misc. product series first.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 85014-RR to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 85014-RR
  • SKU: 85014RRRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

85014-RR Technical Specifications

Manufacturer Reliance Electric
Series Rectifiers & Misc.
Functional Part Number 85014-RR
Functional Description 85014-RR Rectifier Stack

About the 85014-RR

Greater Product Series Information

The 85014-RR module is a rectifier stack assembly that comes from Reliance Electric’s production line. This particular product, along with the other Reliance Electric rectifier stacks, have been discontinued by Reliance Electric, but AX Control makes an attempt to keep them in stock. Please call or email us to ensure that the 85014-RR rectifier stack is available and to make your purchase today.

Hardware Tips and Specifications

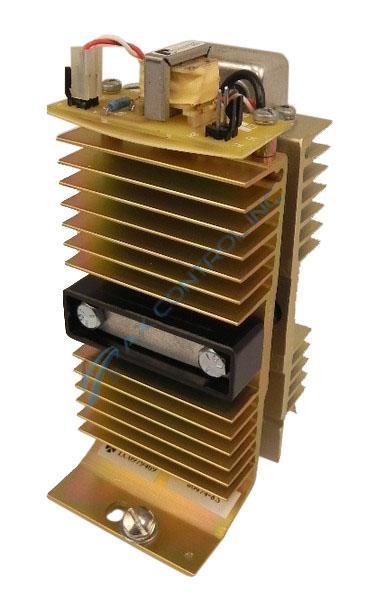

The 85014-RR rectifier stack assembly, in comparison to some of the other rectifier stacks that Reliance Electric produced, is a short device. This 85014-RR Rectifier Stack product offering, while not a typical Reliance Electric product offering, is still able to be contextualized well for the sake of this 85014-RR Rectifier Stack personalized product page as it offers several hardware components recognizable to our team of in-house service technicians. This device is made up of many different metal pieces:

  • There are four metal pieces that are alternating C-shaped. These metal pieces are each labeled with the numbers 1 through 4.
  • On top of these four metal pieces, there are two flat metal pieces secured down to it by four screws, one screw for each of the alternating C-shaped metal pieces.
  • In addition to that, there are terminals on top of these alternating C-shaped metal pieces in the center. These terminals each have a cable that stretches from the terminal to various other places on the 85014-RR rectifier stack assembly.
  • On the upper half of the 85014-RR rectifier stack assembly, there are much smaller terminals that with more wires attached to them.
  • In the middle of these wires, there is a small diode, although one of these wires and compatible diodes are much larger than the other three.

The 85014-RR rectifier stack assembly has an approximate weight of about 32.00 lbs. or 14.5 kg. This total does not include out packaging materials.

Frequently Asked Questions about 85014-RR

What style of warranty would this 85014-RR Rectifier Stack device receive protection by upon my original purchase here?

This 85014-RR Rectifier Stack device would be protected by one year of guaranteed motor warranty upon a purchase here.

How is this 85014-RR Rectifier Stack device mounted in its greater assembly?

This 85014-RR Rectifier Stack device is able to be mounted through use of the dual base-mount screw holes made available in this 85014-RR Rectifier Stack product's base circuit board's backplane assembly.

Reviews For 85014-RR

Internal Review
(5.0)

This 85014-RR Rectifier Stack product offering was originally designed and manufactured specifically for insertion in the trusted Rectifiers & Misc. product series, which truthfully is an amalgamation of more general Reliance Electric products for the sake of our website organization. This 85014-RR Rectifier Stack device however, would still receive a full level of a year of warrantied product protection, and is available here today with both repair and replacement opportunities today, which benefits it well given its fragility. - AX Control Lead Technician

  • 0-85014-RR
  • O-85014-RR

Repair Services For 85014-RR

Type Lead Time Price Action
Repair Service 1-2 weeks $574

Our highly skilled technicians can repair your 85014-RR. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
