Coupling Stack

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 86466-84V to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 86466-84V
  • SKU: 8646684VRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

About the 86466-84V

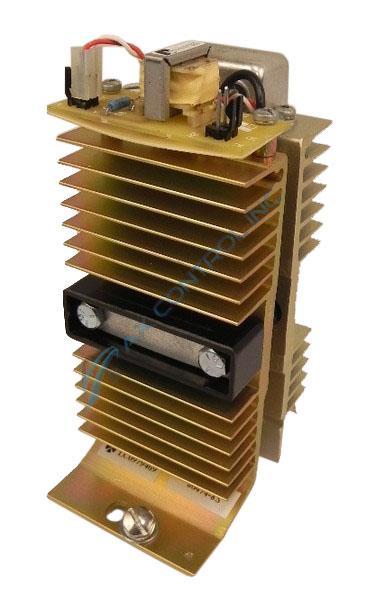

The 86466-84V is a Rectifier Stack made by Reliance Electric. This module may have been sold by ABB or Baldor Reliance at one point but is now a discontinued part. AX Control does try to keep the 86466-84V in stock.

The 86466-84V is sometimes referred to as a semiconductor thyristor. It is used to turn unpredictable AC current into a more manageable DC current that only flows in one way. It is made up of a hollow base that is used as a carrier. There are a number of components that are installed onto the 86466-84V.  There is a total of two 2- section heat sinks each have a gate coupling board mounted to the top.  If one of these gate coupling cards becomes damaged, AX Control does offer replacement boards. Please refer to our website or contact us directly for more information about these PCBs.

For information about the 86466-84V, please look over the original datasheets and instruction manuals from Reliance Electric. If your manual has been lost or misplaced, please let one of our friendly representatives know as you are purchasing the 86466-84V and we may be able to replace it if possible.

Frequently Asked Questions about 86466-84V

What is the coupling board that mounts on the front of the 86466-84V rectifier stack?
This SCR is equipped with Qty 4 0-51879-19 coupling boards, each of which is mounted with two screws and attached via a cable which runs from the thyristor out.
Does AX Control have New 86466-84S rectifiers available?
Our company does the very best we can to keep New, New Surplus, Refurbished, and Used available whenever possible. We have many sourcing channels that allow us to effectively stock hard to find parts. We hope you will give us a call or shoot us an email so we can quote you our offering and provide details such as pricing and warranty.

Repair Services For 86466-84V

Type Lead Time Price Action
Repair Service 1-2 weeks $319

Our highly skilled technicians can repair your 86466-84V. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
